6N137A Datasheet, Optocoupler, Vishay

6N137A Features

  • Optocoupler an open collector. The internal shield provides a guaranteed common mode transient immunity of 1 kV/μs. The use of a 0.1 μF bypass capacitor connected between pin 5 and 8 is recommended

PDF File Details

Part number:

6N137A

Manufacturer:

Vishay ↗

File Size:

221.11kb

Download:

📄 Datasheet

Description:

High speed optocoupler. The 6N137A is single channel 10 MBd optocouplers utilizing a high efficient input LED coupled to a very high speed integrated photo-d

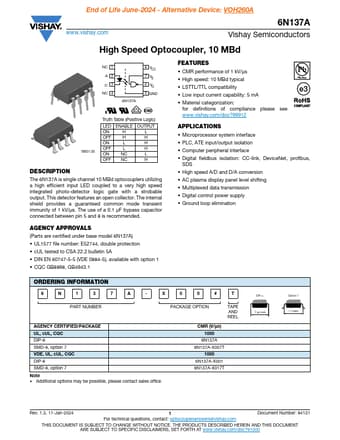

Datasheet Preview: 6N137A 📥 Download PDF (221.11kb)
Page 2 of 6N137A Page 3 of 6N137A

6N137A Application

  • Applications
  • Microprocessor system interface
  • PLC, ATE input/output isolation
  • Computer peripheral interface
  • D
