BU1006-M3 Datasheet - Vishay

BU1006-M3, Bridge Rectifiers

www.vishay.com BU1006-M3, BU1008-M3, BU1010-M3 Vishay General Semiconductor Enhanced isoCink+TM Bridge Rectifiers + ~~ isoCink+™ Case Style BU - ~.

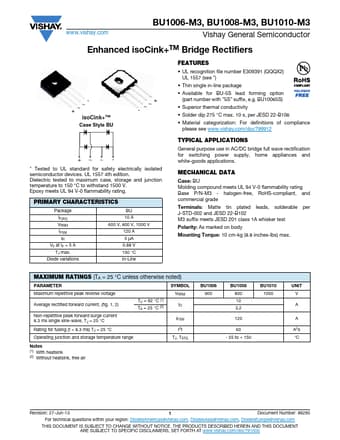

datasheet Preview Page 1 from Datasheet4u.com

BU1006-M3-Vishay.pdf

BU1006-M3 Datasheet Preview — Preview of BU1006-M3 PDF

Datasheet Details

Part number:

BU1006-M3

Manufacturer:

Vishay ↗

File Size:

104.73 KB

Description:

Bridge Rectifiers

Features

* UL recognition file number E309391 (QQQX2) UL 1557 (see
* )
* Thin single in-line package
* Available for BU-5S lead forming option (part number with “5S” suffix, e. g. BU10065S)
* Superior thermal conductivity
* Solder dip 275 °C max. 10 s, per JESD 22-B1

Applications

* General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances and white-goods applications. MECHANICAL DATA Case: BU Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Terminals: Matte tin
