BU1008A-E3, BU1006A-E3, Bridge Rectifiers

www.vishay.com BU1006A-E3, BU1008A-E3, BU1010A-E3 Vishay General Semiconductor Enhanced isoCink+™ Bridge Rectifiers isoCink+™ + ~~ - Case Style BU.

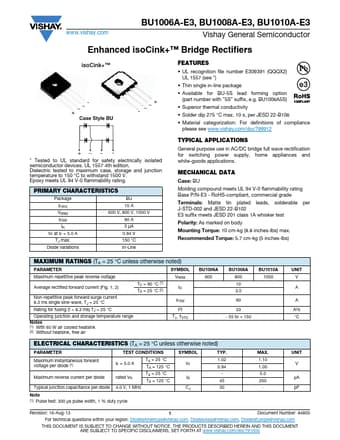

datasheet Preview Page 1 from Datasheet4u.com

BU1006A-E3-Vishay.pdf

BU1008A-E3 Datasheet Preview — This datasheet PDF includes multiple part numbers: BU1008A-E3, BU1006A-E3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BU1008A-E3, BU1006A-E3

Manufacturer:

Vishay ↗

File Size:

101.28 KB

Description:

Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: BU1008A-E3, BU1006A-E3.
Please refer to the document for exact specifications by model.

Features

* UL recognition file number E309391 (QQQX2) UL 1557 (see
* )
* Thin single in-line package
* Available for BU-5S lead forming option (part number with “5S” suffix, e. g. BU1006A5S)
* Superior thermal conductivity
* Solder dip 275 °C max. 10 s, per JESD 22-B

Applications

* General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances and white-goods applications. MECHANICAL DATA Case: BU Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin plated leads, solde
