BU1008-E3, BU1006-E3 Datasheet - Vishay

BU1008-E3 Bridge Rectifiers

www.vishay.com BU1006-E3, BU1008-E3, BU1010-E3 Vishay General Semiconductor Enhanced isoCink+™ Bridge Rectifiers isoCink+™ + ~~ - Case Style BU - ~~+ +~~ - Tested to UL standard for safety electrically isolated semiconductor devices. UL 1557 4th edition. Dielectric tested to maximum case, storage and junction temperature to 150 °C to withstand 1500 V. Epoxy meets UL 94 V-0 flammability rating. PRIMARY CHARACTERISTICS Package BU IF(AV) VRRM IFSM IR VF at IF = 5.0 A TJ max. Diode.

BU1008-E3 Features

* UL recognition file number E309391 (QQQX2) UL 1557 (see

* )

* Thin single in-line package

* Available for BU-5S lead forming option (part number with “5S” suffix, e.g. BU10065S)

* Superior thermal conductivity

* Solder dip 275 °C max. 10 s, per JESD 22-B1

BU1006-E3-Vishay.pdf

This datasheet PDF includes multiple part numbers: BU1008-E3, BU1006-E3. Please refer to the document for exact specifications by model.

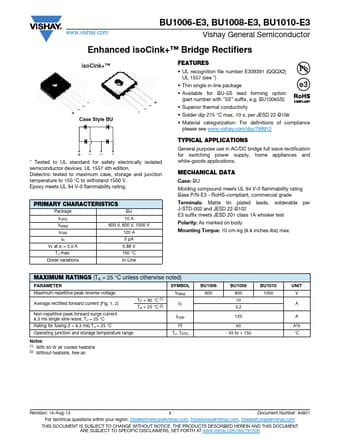

BU1008-E3 Datasheet Preview Page 2 BU1008-E3 Datasheet Preview Page 3

Datasheet Details

Part number:

BU1008-E3, BU1006-E3

Manufacturer:

Vishay ↗

File Size:

105.26 KB

Description:

Bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: BU1008-E3, BU1006-E3.
Please refer to the document for exact specifications by model.
