DG418, DG417 Precision CMOS Analog Switches

DG418 Description

DG417, DG418, DG419 Vishay Siliconix Precision CMOS Analog Switches .
The DG417, DG418, DG419 monolithic CMOS analog switches were designed to provide high performance switching of analog signals.

DG418 Features

* ± 15 V analog signal range
* On-resistance - RDS(on): 20 
* Fast switching action - tON: 100 ns
* Ultra low power requirements - PD: 35 nW
* TTL and CMOS compatible
* MiniDIP and SOIC packaging
* 44 V supply max. rating
* 44 V supply

DG418 Applications

* requiring high performance and efficient use of board space. To achieve high-voltage ratings and superior switching performance, the DG417 series is built on Vishay Siliconix’s high voltage silicon gate (HVSG) process. Break-beforemake is guaranteed for the DG419, which is an SPDT configuration. An

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DG418, DG417. Please refer to the document for exact specifications by model.

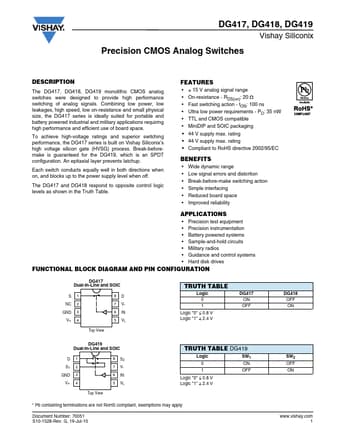

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DG418, DG417
Manufacturer
Vishay ↗
File Size
225.18 KB
Datasheet
DG417-Vishay.pdf
Description
Precision CMOS Analog Switches
Note
This datasheet PDF includes multiple part numbers: DG418, DG417.
Please refer to the document for exact specifications by model.
