Description

GPP10A, GPP10B, GPP10D, GPP10G, GPP10J, GPP10K, GPP10M www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier DO-.

📥 Download Datasheet

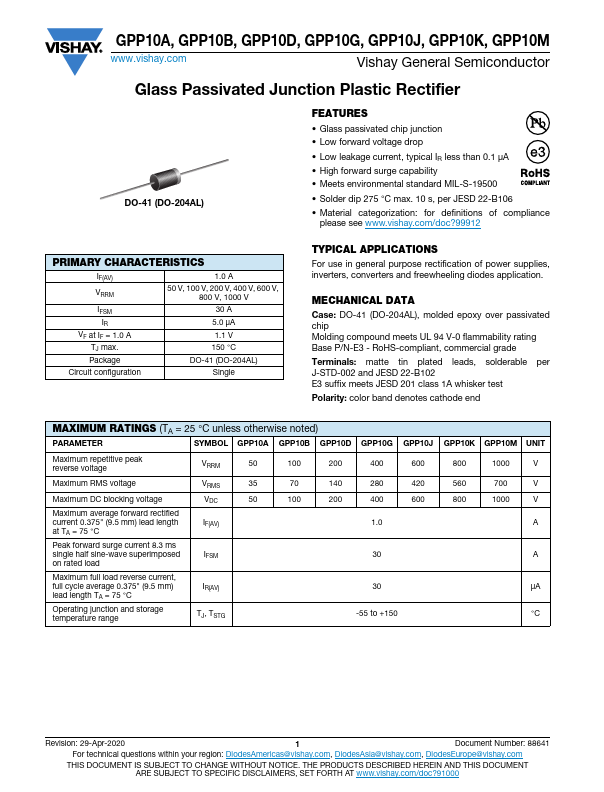

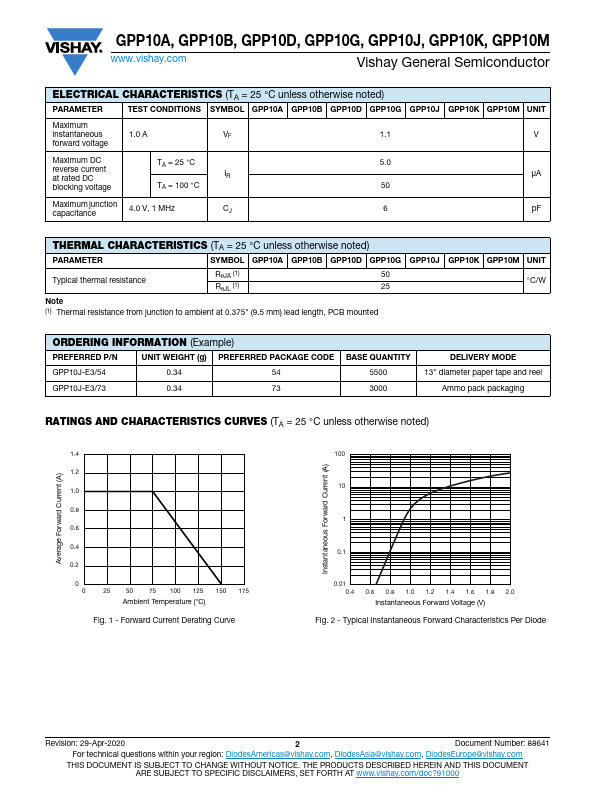

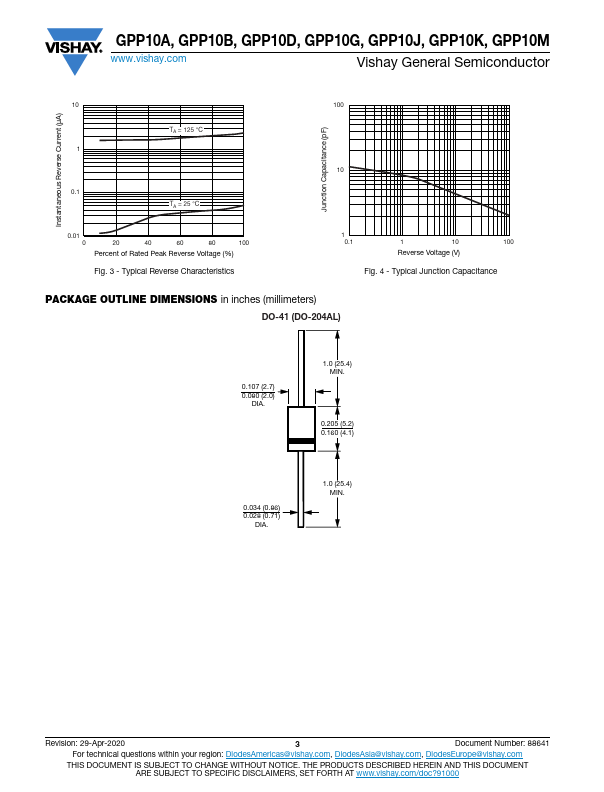

GPP10J Datasheet Preview — This datasheet PDF includes multiple part numbers: GPP10J, GPP10A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GPP10J, GPP10A
Manufacturer: Vishay ↗
File Size: 64.81 KB
Datasheet: GPP10A-Vishay.pdf
Description: Glass Passivated Junction Plastic Rectifier
Note: This datasheet PDF includes multiple part numbers: GPP10J, GPP10A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* Low forward voltage drop
* Low leakage current, typical IR less than 0.1 μA
* High forward surge capability
* Meets environmental standard MIL-S-19500
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material

Applications

* For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application. MECHANICAL DATA Case: DO-41 (DO-204AL), molded epoxy over passivated chip Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Termina
