IHLP-5050CE-01 Datasheet - Vishay

IHLP-5050CE-01 Commercial Inductors

www.vishay.com IHLP-5050CE-01 Vishay Dale IHLP® Commercial Inductors, High Saturation Series DESIGN SUPPORT TOOLS click logo to get started Models Available Design Tools Available STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE DCR ± 20 % AT 100 kHz, TYP. 0.25 V, 0 A 25 °C (μH) (mΩ) 0.10 0.8 0.15 1 0.22 1.1 0.33 1.3 0.47 1.6 0.60 1.8 0.68 2.3 0.82 2.6 1.0 3.3 1.5 5.1 1.8 6.5 2.2 7.2 3.3 11 4.7 14.3 5.6 18.3 6.8 19.8 8.2 24.8 10 30.4 DCR MAX. 25 °C (mΩ) 0.96 1.2 1..

IHLP-5050CE-01 Datasheet (167.30 KB)

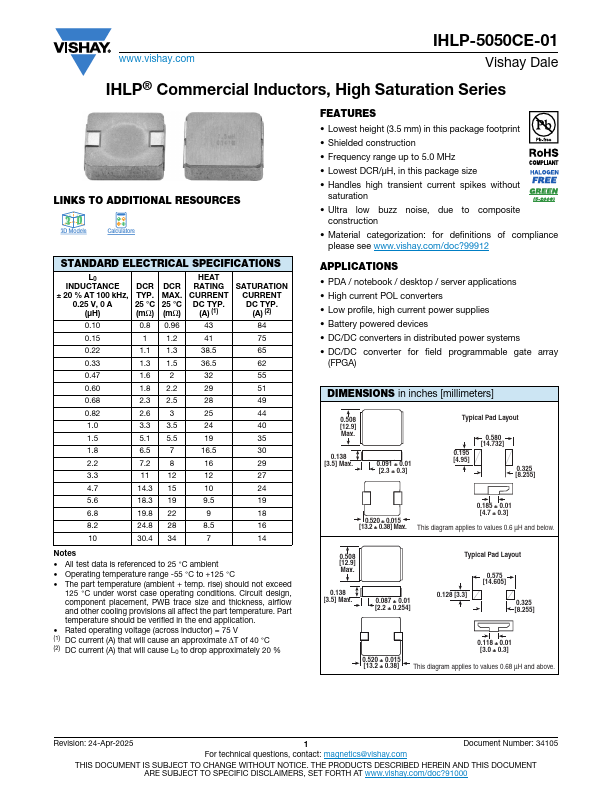

Preview of IHLP-5050CE-01 PDF

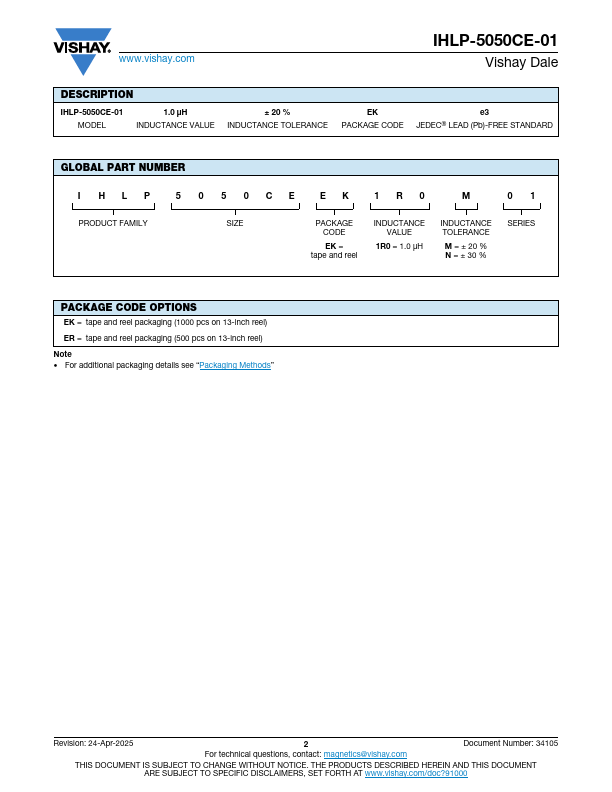

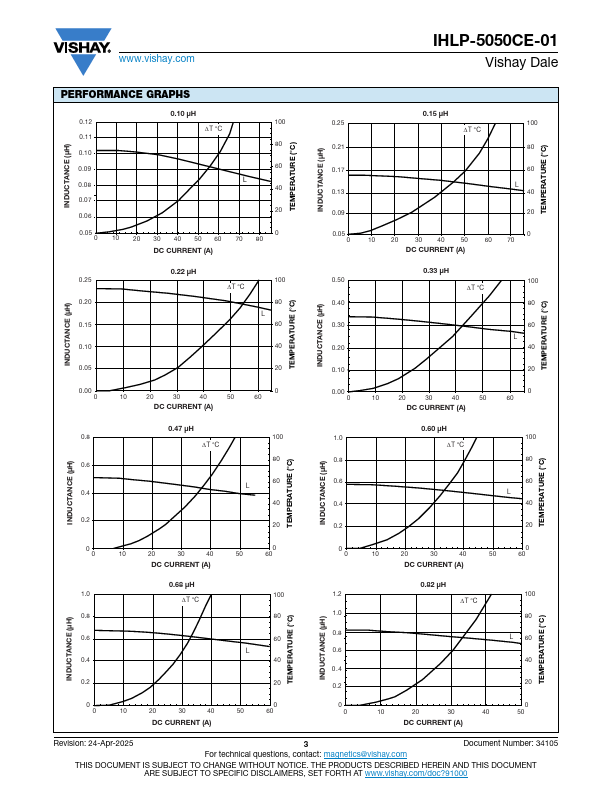

IHLP-5050CE-01 Datasheet Preview Page 2 IHLP-5050CE-01 Datasheet Preview Page 3

Datasheet Details

Part number:

IHLP-5050CE-01

Manufacturer:

Vishay ↗

File Size:

167.30 KB

Description:

Commercial inductors.
