IRFBC40LC - Power MOSFET

IRFBC40LC Description

www.vishay.com IRFBC40LC Vishay Siliconix Power MOSFET D TO-220AB S D G G S N-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg max.(nC) Q.
This new series of low charge power MOSFETs achieve significantly lower gate charge over conventional Power MOSFETs.

IRFBC40LC Features

* Ultra low gate charge
* Reduced gate drive requirement Available
* Enhanced 30 V, VGS rating
* Reduced Ciss, Coss, Crss Available
* Extremely high frequency operation
* Repetitive avalanche rated
* Material categorization: for definition

IRFBC40LC Applications

* Frequencies of a few MHz at high current are possible using the new low charge power MOSFETs. These device improvements combined with the proven ruggedness and reliability that are characteristic of power MOSFETs offer the designer a new standard in power transistors for switching applications. OR

📥 Download Datasheet

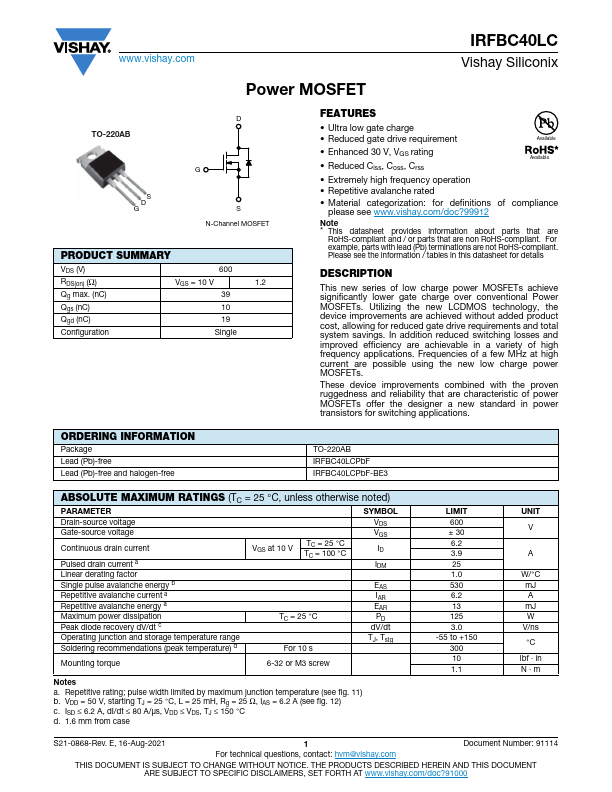

Preview of IRFBC40LC PDF

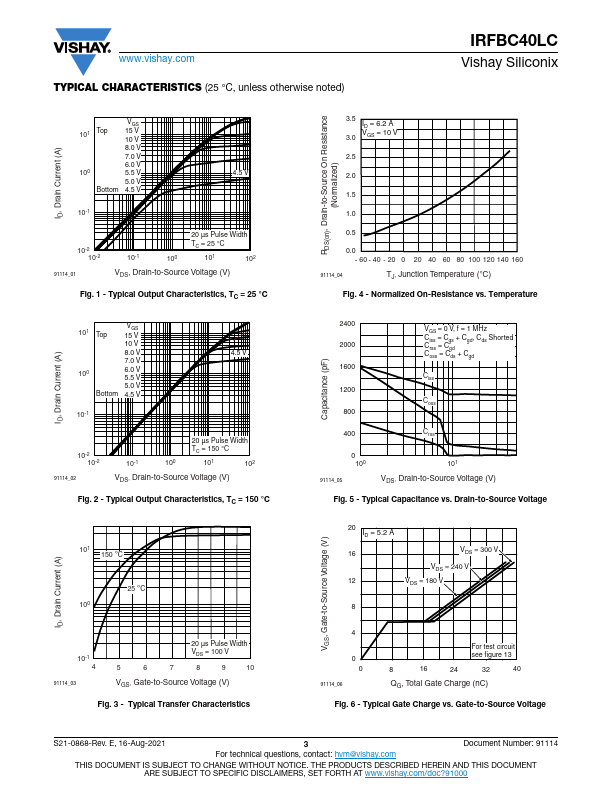

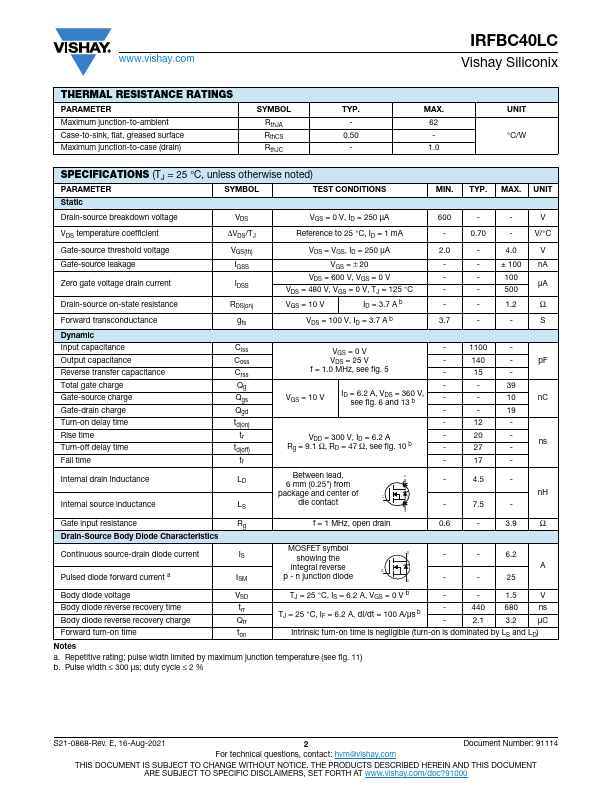

datasheet Preview Page 2 datasheet Preview Page 3
