IRFPC40 - Power MOSFET

IRFPC40 Description

Power MOSFET IRFPC40, SiHFPC40 Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 600 VGS = 10 V .
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRFPC40 Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Lead (Pb)-free Available Available RoHS

IRFPC40 Applications

* where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole. It also provides greater creepage distance between pins to meet the requirements of most safety specifications. TO-247 IRFPC40PbF SiH

📥 Download Datasheet

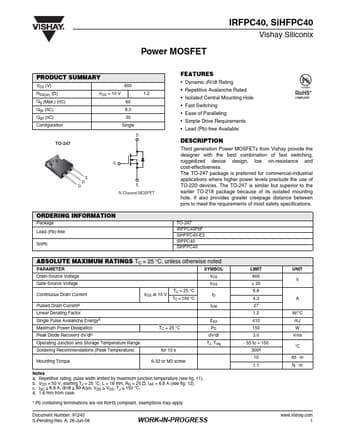

Preview of IRFPC40 PDF
datasheet Preview Page 2 datasheet Preview Page 3
