LL4154 - Small Signal Fast Switching Diode

LL4154 Description

www.vishay.com LL4154 Vishay Semiconductors Small Signal Fast Switching Diode .

LL4154 Features

* Silicon epitaxial planar diodes
* Electrical data identical with the device 1N4154

LL4154 Applications

* Extreme fast switches LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples MECHANICAL DATA Case: MiniMELF (SOD-80) Weight: approx. 31 mg Cathode band color: black Packaging codes / options: GS18/10K per 13" reel (8 mm tape), 10K/box GS08/2.5K per 7" r

📥 Download Datasheet

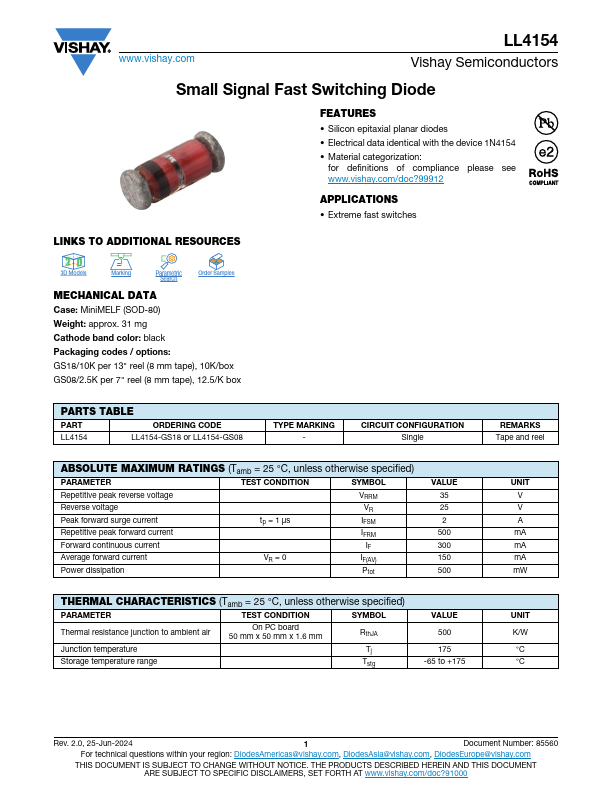

Preview of LL4154 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LL4154
Manufacturer
Vishay ↗
File Size
113.03 KB
Datasheet
LL4154-Vishay.pdf
Description
Small Signal Fast Switching Diode
