RMB4S, RMB2S Miniature Glass Passivated Fast Recovery Surface Mount Bridge Rectifier

RMB4S Description

www.vishay.com RMB2S, RMB4S Vishay General Semiconductor Miniature Glass Passivated Fast Recovery Surface-Mount Bridge Rectifier ~ ~ ~ ~ MBS (TO-.

RMB4S Features

* UL recognition, file number E54214
* Saves space on printed circuit boards
* Ideal for automated placement
* Fast recovery, low switching loss
* High surge current capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Mat

RMB4S Applications

* General purpose use in AC/DC bridge full wave rectification for power supply, lighting ballaster, battery charger, home appliances, office equipment, and telecommunication applications. MECHANICAL DATA Case: MBS (TO-269AA) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RMB4S, RMB2S. Please refer to the document for exact specifications by model.

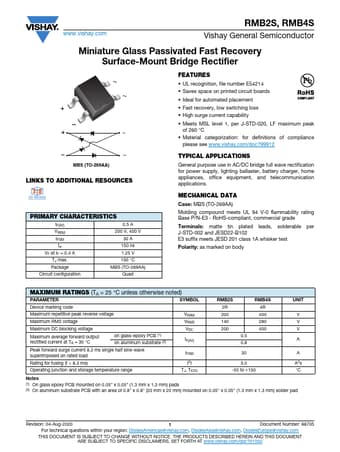

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RMB4S, RMB2S
Manufacturer
Vishay ↗
File Size
101.12 KB
Datasheet
RMB2S-Vishay.pdf
Description
Miniature Glass Passivated Fast Recovery Surface Mount Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: RMB4S, RMB2S.
Please refer to the document for exact specifications by model.
