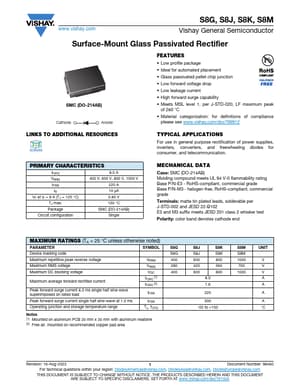

S8M Surface-Mount Glass Passivated Rectifier

www.vishay.com S8G, S8J, S8K, S8M Vishay General Semiconductor Surface-Mount Glass Passivated Rectifier SMC (DO-214AB) Cathode Anode .

S8M-Vishay.pdf

S8M Datasheet Preview — Preview of S8M PDF

Datasheet Details

Part number:

S8M

Manufacturer:

Vishay ↗

File Size:

92.76 KB

Description:

Surface-Mount Glass Passivated Rectifier

Features

* Low profile package
* Ideal for automated placement
* Glass passivated pellet chip junction
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM IR VF at IF = 8 A (TJ = 125 °C) TJ max. Package 8.0 A 400 V, 600 V, 800 V, 1000 V 220 A 10 μA 0.85 V 150 °C SMC
