SI2302DS N-Channel MOSFET

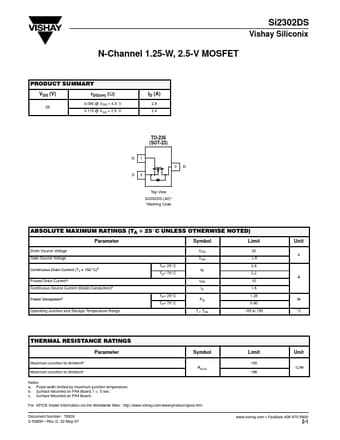

Si2302DS Vishay Siliconix N-Channel 1.25-W, 2.5-V MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (W) 0.085 @ VGS = 4.5 V 20 0.115 @ VGS = 2.5 V ID (A) 2.8 2.4 TO-236 (SOT-23) G1 S2 3D Top View Si2302DS (A2) Marking Code ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150_C)b Pulsed Drain Currenta Continuous Source Current (Diode Conduction)b Power Dissipationb Operating Junc.
