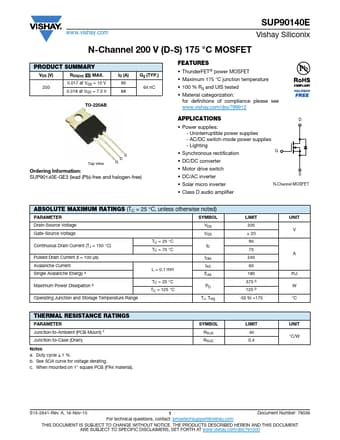

SUP90140E Datasheet, Mosfet, Vishay

SUP90140E Features

• Mosfet
• ThunderFET® power MOSFET
• Maximum 175 °C junction temperature
• 100 % Rg and UIS tested
• Material categorization: for definitions of compliance pleas

PDF File Details

Part number:

SUP90140E

Manufacturer:

Vishay ↗

File Size:

145.43kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

SUP90140E Application

• Applications D
• Power supplies: - Uninterruptible power supplies - AC/DC switch-mode power supplies - Lighting
• Synchronous
