SUP90N04-3m3P N-Channel 40V (D-S) MOSFET

Vishay

SUP90N04-3m3P Description

SUP90N04-3m3P Vishay Siliconix N-Channel 40 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 40 0.0033 at VGS = 10 V 0.0041 at VGS = 4.5 V ID (.

SUP90N04-3m3P Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

SUP90N04-3m3P Applications

* Power Supply - Secondary Synchronous Rectification
* DC/DC Converter D GDS Top View Ordering Information: SUP90N04-3m3P-GE3 (Lead (Pb)-free and Halogen-free) G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Volta

📥 Download Datasheet

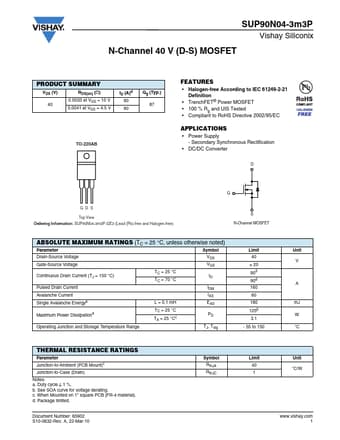

SUP90N04-3m3P Datasheet Preview — Preview of SUP90N04-3m3P PDF

Datasheet Details

Part number: SUP90N04-3m3P
Manufacturer: Vishay ↗
File Size: 102.55 KB
Datasheet: SUP90N04-3m3P-Vishay.pdf
Description: N-Channel 40V (D-S) MOSFET
