SUP90N08-7m7P

N-Channel 75-V (D-S) MOSFET

SUP90N08-7m7P Features

* TrenchFET® Power MOSFETS

* 100 % Rg and UIS Tested APPLICATIONS

* Synchronous Rectification RoHS COMPLIANT D DRAIN connected to TAB GD S Top View Ordering Information: SUP90N08-7m7P-E3 (Lead (Pb)-free) G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless ot

SUP90N08-7m7P Datasheet (110.48 KB)

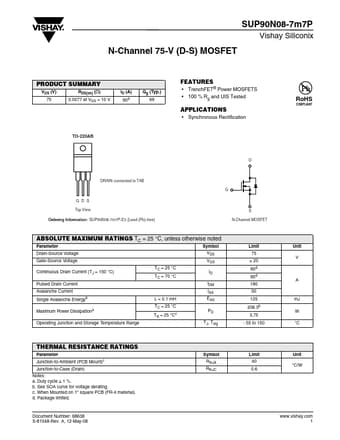

Preview of SUP90N08-7m7P PDF

Datasheet Details

Part number:

SUP90N08-7m7P

Manufacturer:

Vishay ↗

File Size:

110.48 KB

Description:

N-channel 75-v (d-s) mosfet.
SUP90N08-7m7P Vishay Siliconix N-Channel 75-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 75 0.0077 at VGS = 10 V ID (A) 90d Qg (Typ.) 69 .
