SUP90N03-03

N-Channel 30-V (D-S) MOSFET

SUP90N03-03 Features

* TrenchFET® Power MOSFET

* 100 % Rg and UIS Tested

* Compliant to RoHS Directive 2011/65/EU APPLICATIONS

* OR-ing

* Server

* DC/DC D DRAIN connected to TAB G GDS Top View Ordering Information: SUP90N03-03-E3 (Lead (Pb)-free) S N-Channel MOSFET

SUP90N03-03 Datasheet (138.40 KB)

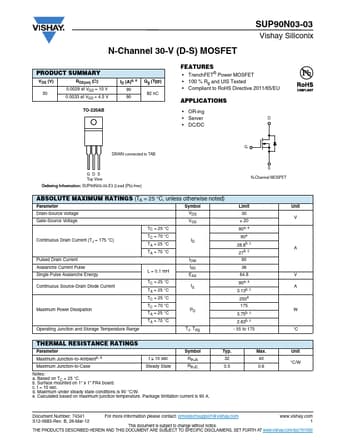

Preview of SUP90N03-03 PDF

Datasheet Details

Part number:

SUP90N03-03

Manufacturer:

Vishay ↗

File Size:

138.40 KB

Description:

N-channel 30-v (d-s) mosfet.
N-Channel 30-V (D-S) MOSFET SUP90N03-03 Vishay Siliconix PRODUCT SUMMARY VDS (V) 30 RDS(on) () 0.0029 at VGS = 10 V 0.0033 at VGS = 4.5 V TO-220.
