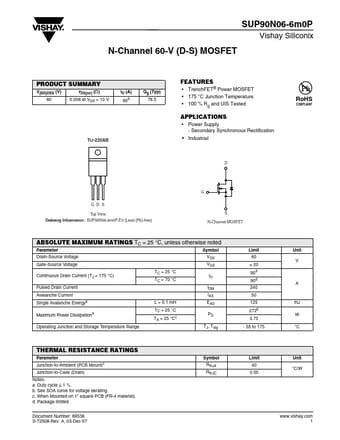

SUP90N06-6m0P Datasheet, Mosfet, Vishay

SUP90N06-6m0P Features

• Mosfet
• TrenchFET® Power MOSFET
• 175 °C Junction Temperature
• 100 % Rg and UIS Tested APPLICATIONS
• Power Supply - Secondary Synchronous Rectification

PDF File Details

Part number:

SUP90N06-6m0P

Manufacturer:

Vishay ↗

File Size:

103.14kb

Download:

📄 Datasheet

Description:

N-channel 60-v (d-s) mosfet.

SUP90N06-6m0P Application

• Applications
• Power Supply - Secondary Synchronous Rectification
• Industrial D RoHS COMPLIANT GD S Top View Ordering Informatio
