Si1024X - Dual N-Channel 20V MOSFET

Si1024X Description

Dual N-Channel 20 V (D-S) MOSFET Si1024X Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) () 0.70 at VGS = 4.5 V 20 0.85 at VGS = 2.5 V 1.25 .

Si1024X Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET: 1.8 V Rated
* Very Small Footprint
* High-Side Switching
* Low On-Resistance: 0.7 
* Low Threshold: 0.8 V (typ. )
* Fast Switching Speed: 10 ns
* 1.8 V Ope

Si1024X Applications

* Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories
* Battery Operated Systems
* Power Supply Converter Circuits
* Load/Power Switching Cell Phones, Pagers ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol 5s Steady State

📥 Download Datasheet

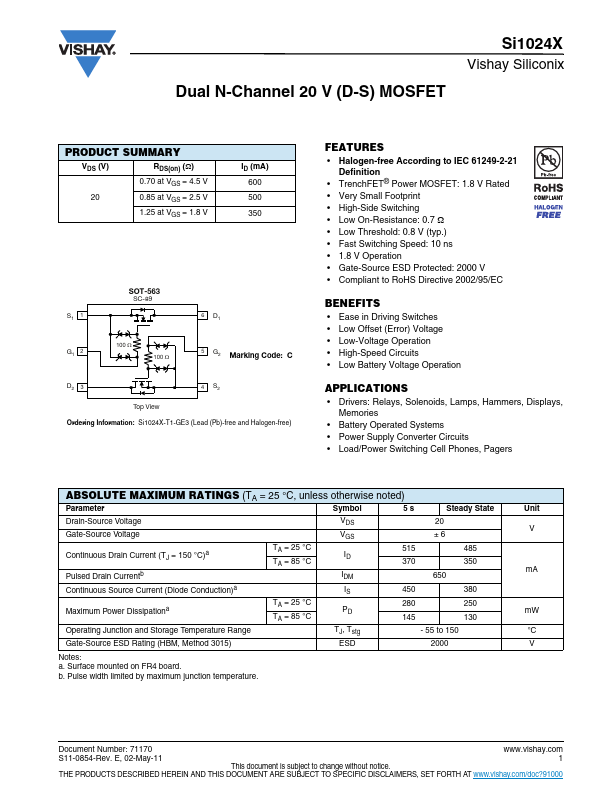

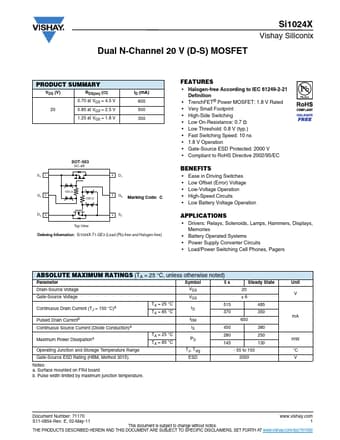

Preview of Si1024X PDF

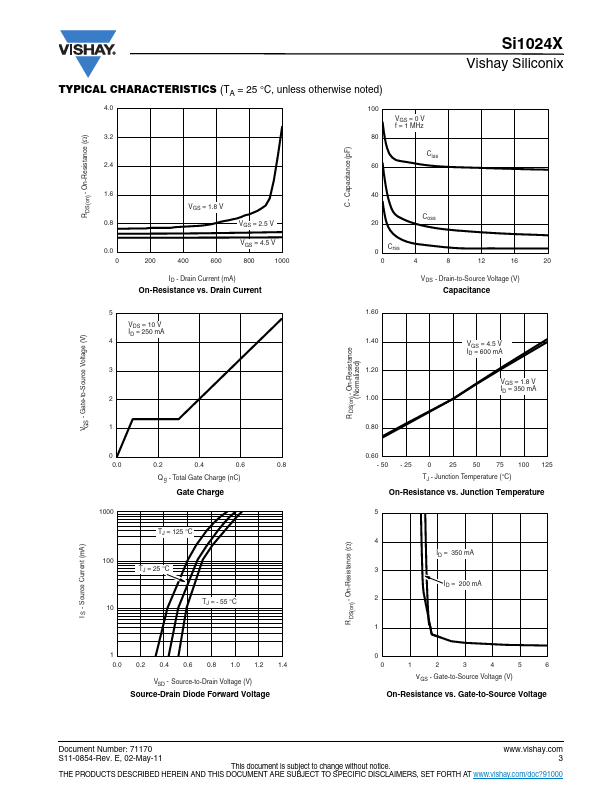

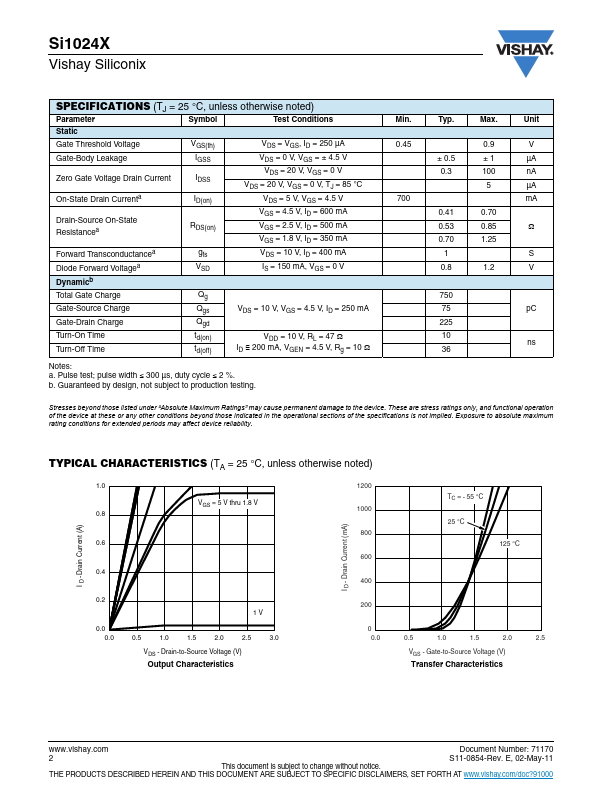

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Si1024X
Manufacturer
Vishay ↗
File Size
137.39 KB
Datasheet
Si1024X-Vishay.pdf
Description
Dual N-Channel 20V MOSFET
