SiS184LDN N-Channel 60V MOSFET

Vishay

Description

www.vishay.com SiS184LDN Vishay Siliconix N-Channel 60 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 3.3 mm 1 Top View 3.3 mm PRODUCT SUM.

📥 Download Datasheet

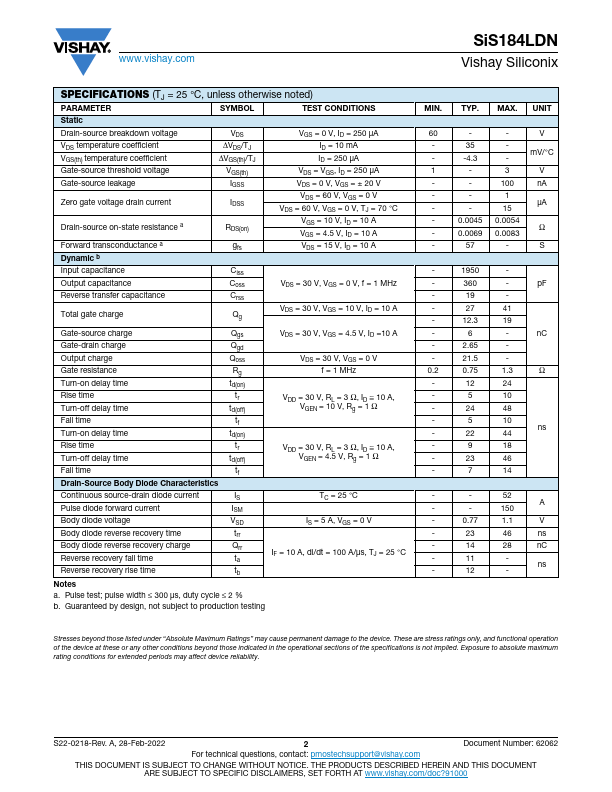

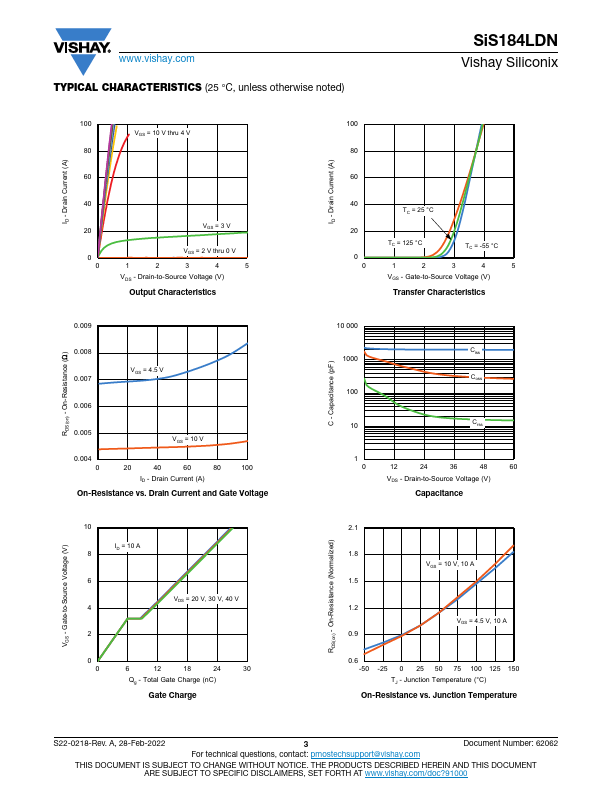

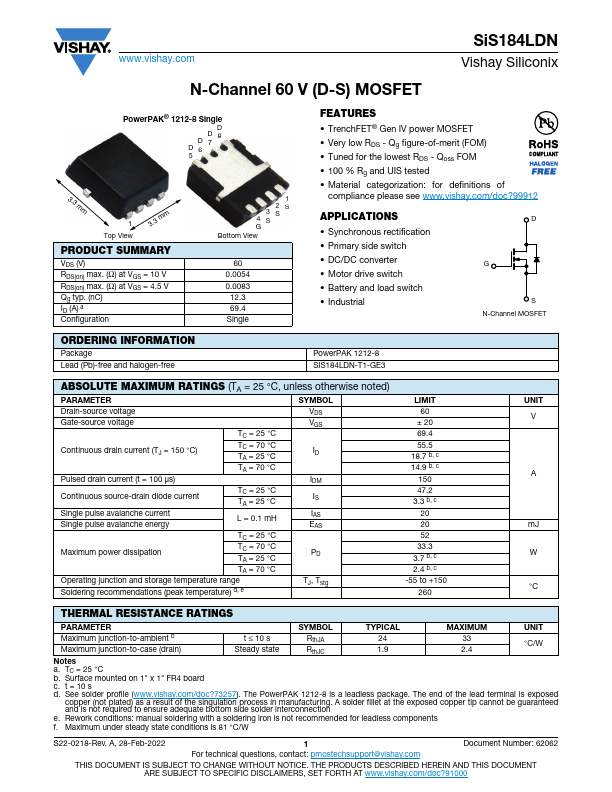

SiS184LDN Datasheet Preview — Preview of SiS184LDN PDF

Datasheet Specifications

Part number: SiS184LDN
Manufacturer: Vishay ↗
File Size: 245.73 KB
Datasheet: SiS184LDN-Vishay.pdf
Description: N-Channel 60V MOSFET

Features

* TrenchFET® Gen IV power MOSFET
* Very low RDS - Qg figure-of-merit (FOM)
* Tuned for the lowest RDS - Qoss FOM
* 100 % Rg and UIS tested

Applications

* Synchronous rectification
* Primary side switch
* DC/DC converter
* Motor drive switch
* Battery and load switch
* Industrial D G S N-Channel MOSFET PowerPAK 1212-8 SIS184LDN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PA
