SiS184DN - N-Channel 60V MOSFET

SiS184DN Description

www.vishay.com SiS184DN Vishay Siliconix N-Channel 60 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 3.3 mm 1 Top View 3.3 mm PRODUCT SUMM.

SiS184DN Features

* TrenchFET® Gen IV power MOSFET
* Very low RDS - Qg figure-of-merit (FOM)
* Tuned for the lowest RDS - Qoss FOM
* 100 % Rg and UIS tested

SiS184DN Applications

* Synchronous rectification
* Primary side switch
* DC/DC converter
* Motor drive switch
* Battery and load switch
* Industrial D G S N-Channel MOSFET PowerPAK 1212-8 SiS184DN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PAR

📥 Download Datasheet

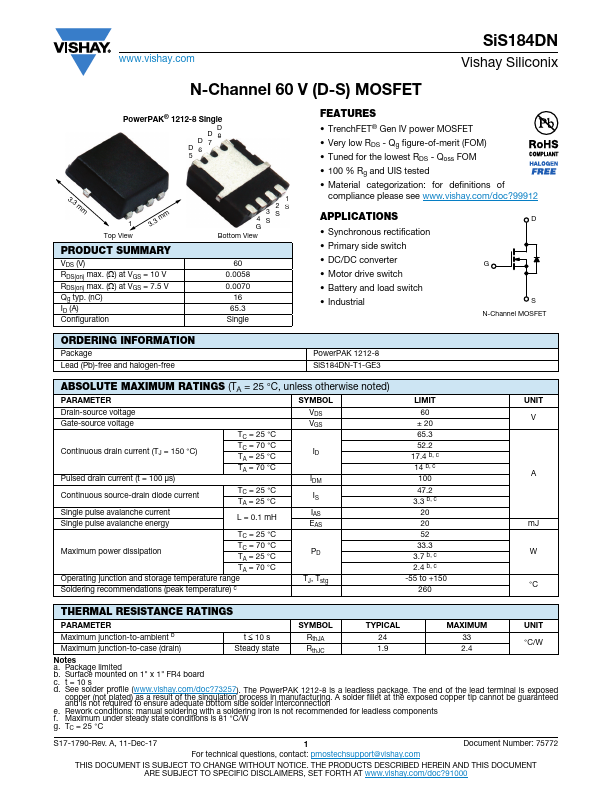

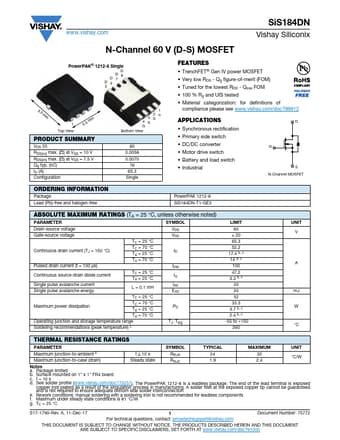

Preview of SiS184DN PDF

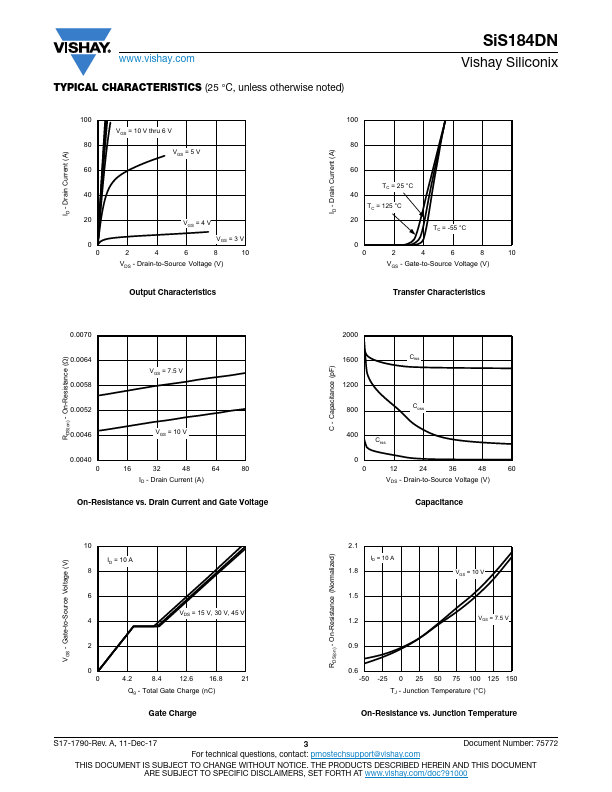

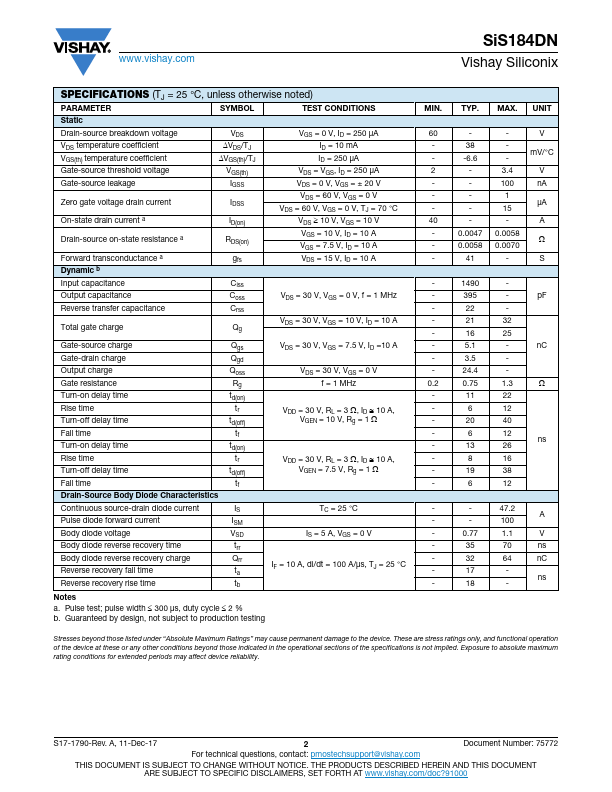

datasheet Preview Page 2 datasheet Preview Page 3
