SiS178LDN - N-Channel 70V MOSFET

SiS178LDN Description

www.vishay.com SiS178LDN Vishay Siliconix N-Channel 70 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 3.3 mm 1 Top View 3.3 mm PRODUCT SUM.

SiS178LDN Features

* TrenchFET® Gen IV power MOSFET
* Very low RDS x Qg figure-of-merit (FOM)
* Tuned for the lowest RDS x Qoss FOM
* 100 % Rg and UIS tested

SiS178LDN Applications

* Synchronous rectification
* Primary side switch
* DC/DC converter
* Motor drive control
* Load switch D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8 SIS178LDN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °

📥 Download Datasheet

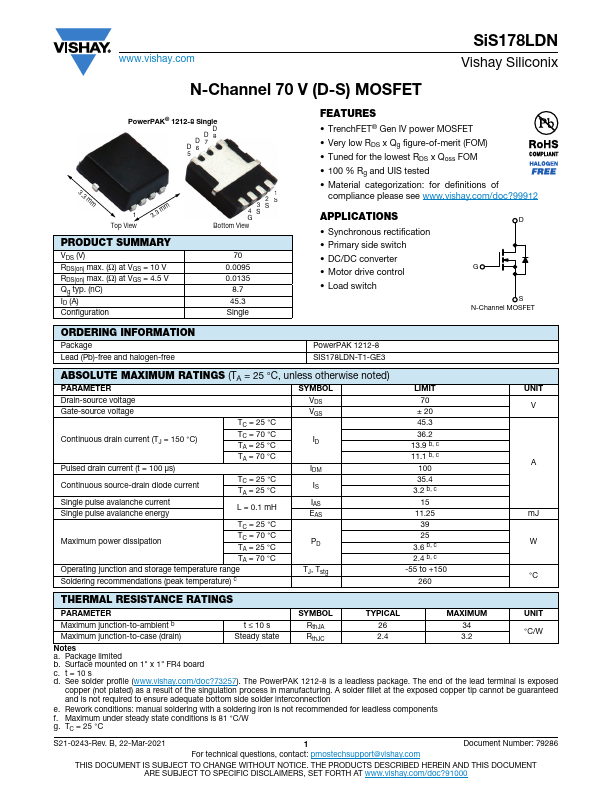

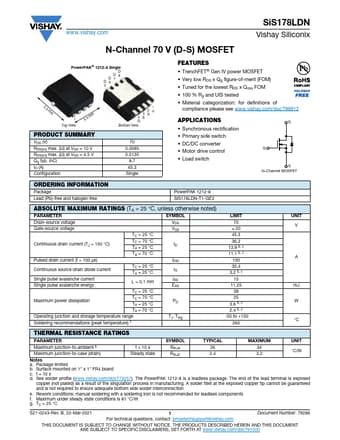

Preview of SiS178LDN PDF

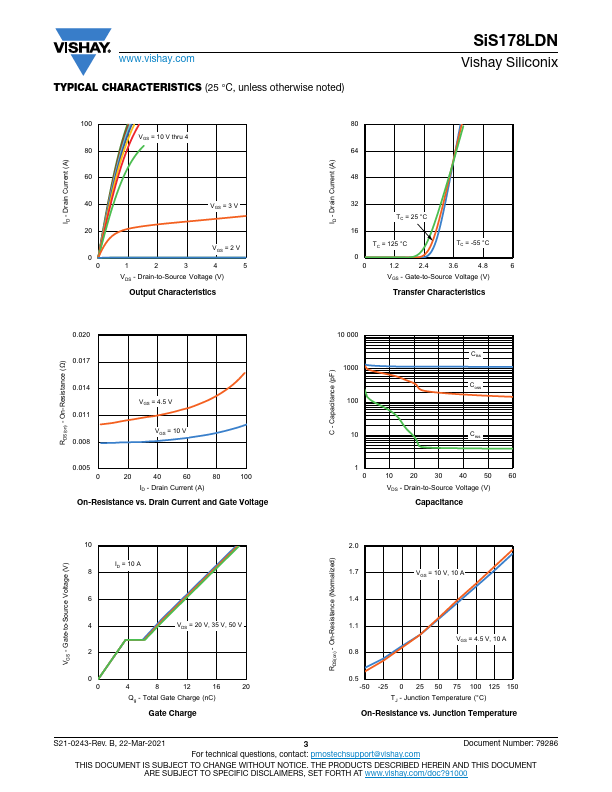

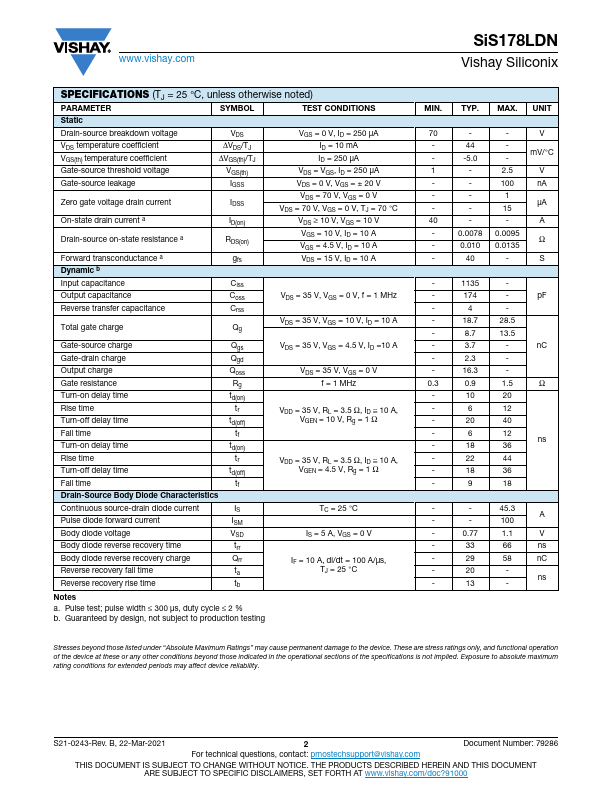

datasheet Preview Page 2 datasheet Preview Page 3
