SiS176LDN - N-Channel 70V MOSFET

SiS176LDN Description

www.vishay.com SiS176LDN Vishay Siliconix N-Channel 70 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 3.3 mm 1 Top View 3.3 mm PRODUCT SUM.

SiS176LDN Features

* TrenchFET® Gen IV power MOSFET
* Very low RDS x Qg figure-of-merit (FOM)
* Tuned for the lowest RDS x Qoss FOM
* 100 % Rg and UIS tested

SiS176LDN Applications

* Synchronous rectification
* Primary side switch
* DC/DC converter
* Motor drive control
* Load switch D G S N-Channel MOSFET PowerPAK 1212-8 SiS176LDN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-source vo

📥 Download Datasheet

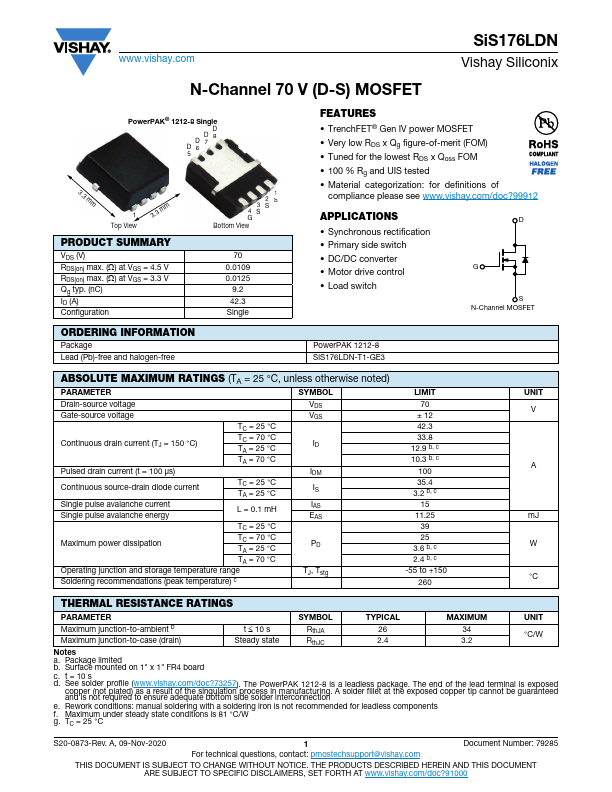

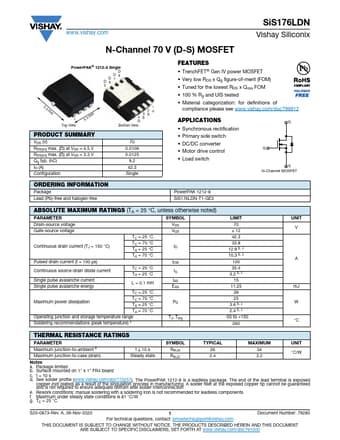

Preview of SiS176LDN PDF

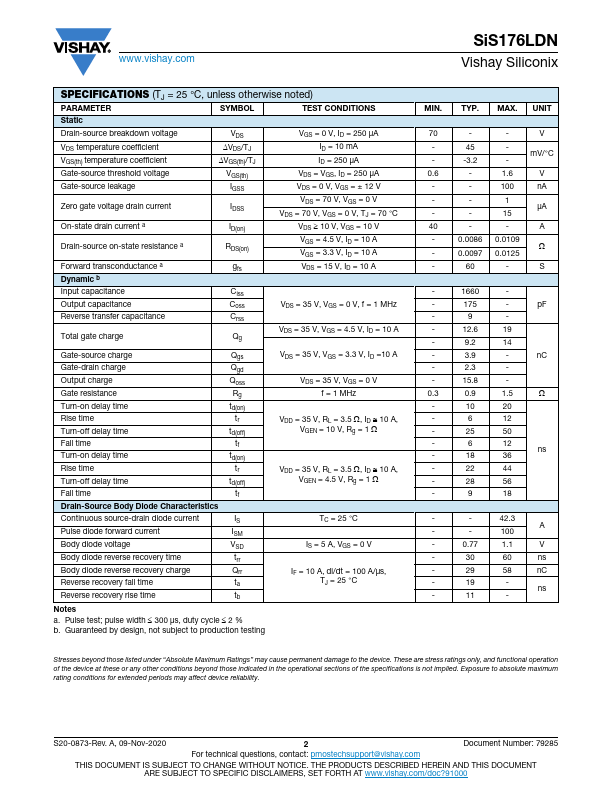

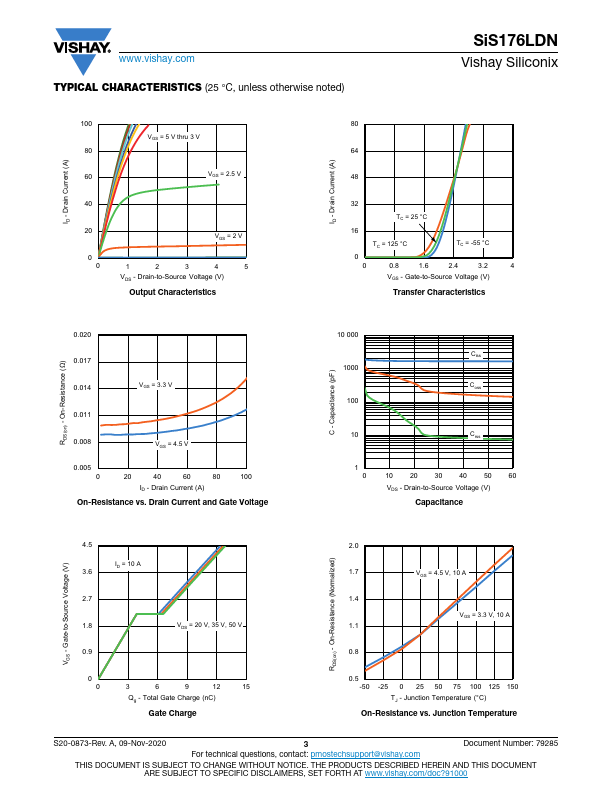

datasheet Preview Page 2 datasheet Preview Page 3
