SiS5712DN, N-Channel 150V MOSFET

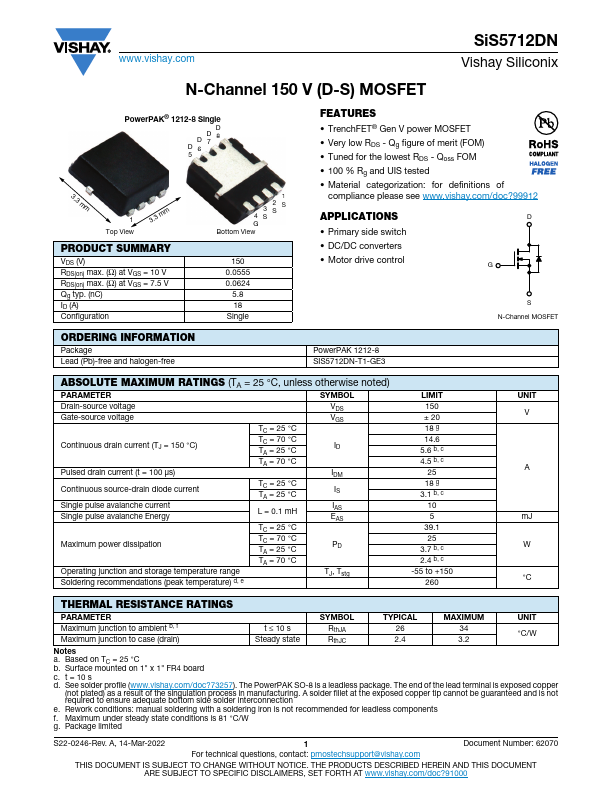

www.vishay.com SiS5712DN Vishay Siliconix N-Channel 150 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 3.3 mm 1 Top View 3.3 mm PRODUCT SU.

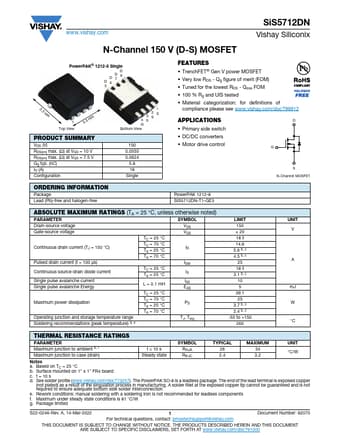

datasheet Preview Page 1 from Datasheet4u.com

SiS5712DN-Vishay.pdf

SiS5712DN Datasheet Preview — Preview of SiS5712DN PDF

Datasheet Details

Part number:

SiS5712DN

Manufacturer:

Vishay ↗

File Size:

238.77 KB

Description:

N-Channel 150V MOSFET

Features

* TrenchFET® Gen V power MOSFET
* Very low RDS - Qg figure of merit (FOM)
* Tuned for the lowest RDS - Qoss FOM
* 100 % Rg and UIS tested

Applications

* Primary side switch
* DC/DC converters
* Motor drive control D G PowerPAK 1212-8 SIS5712DN-T1-GE3 S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-source voltage Gate-source voltage Continuous drain current (TJ =
