SiS9446DN, Dual N-Channel 40V MOSFET

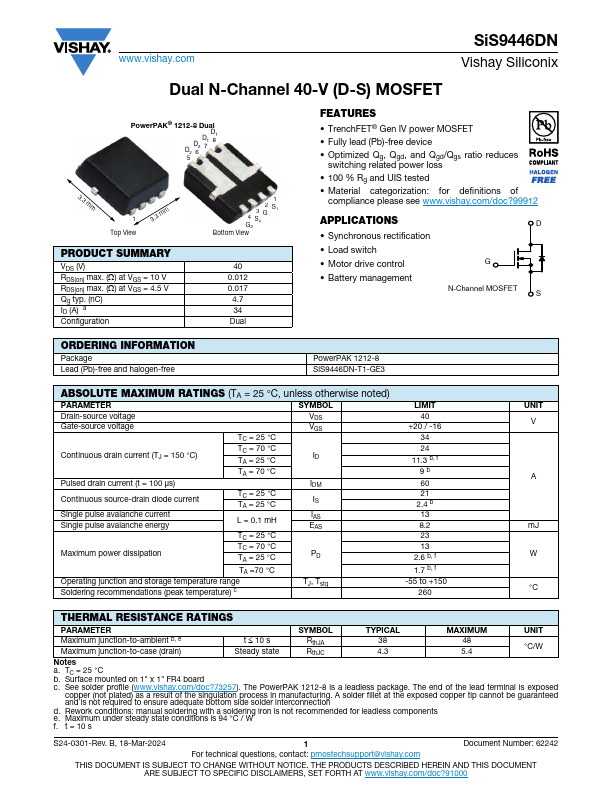

www.vishay.com SiS9446DN Vishay Siliconix Dual N-Channel 40-V (D-S) MOSFET PowerPAK® 1212-8 Dual D2 D2 6 D1 7 D1 8 5 3.3 mm 1 Top View 3.3 .

datasheet Preview Page 1 from Datasheet4u.com

SiS9446DN-Vishay.pdf

SiS9446DN Datasheet Preview — Preview of SiS9446DN PDF

Datasheet Details

Part number:

SiS9446DN

Manufacturer:

Vishay ↗

File Size:

207.23 KB

Description:

Dual N-Channel 40V MOSFET

Features

* TrenchFET® Gen IV power MOSFET
* Fully lead (Pb)-free device
* Optimized Qg, Qgd, and Qgd/Qgs ratio reduces switching related power loss
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 A

Applications

* D
* Synchronous rectification
* Load switch
* Motor drive control G
* Battery management N-Channel MOSFET S ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8 SiS9446DN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise n
