SiS9634LDN Dual N-Channel MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com SiS9634LDN Vishay Siliconix Dual N-Channel 60-V (D-S) MOSFET PowerPAK® 1212-8 Dual D2 D2 6 D1 7 D1 8 5 3.3 mm 1 Top View 3.3.

📥 Download Datasheet

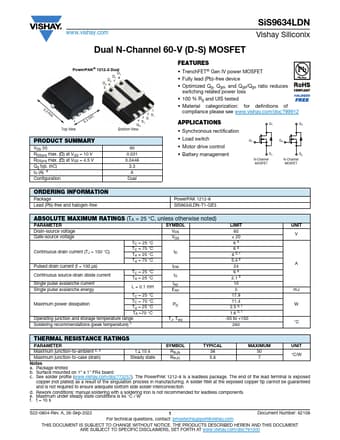

Preview of SiS9634LDN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* TrenchFET® Gen IV power MOSFET
* Fully lead (Pb)-free device
* Optimized Qg, Qgd, and Qgd/Qgs ratio reduces switching related power loss
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 A

Applications

* Synchronous rectification
* Load switch
* Motor drive control
* Battery management D1 D2 G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8 SiS9634LDN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (T
