SiSB46DN N-Channel MOSFET

SiSB46DN Description

www.vishay.com SiSB46DN Vishay Siliconix Dual N-Channel 40 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 40 RDS(on) () MAX.0.01171 at VGS = 10 V 0.015.

SiSB46DN Features

* TrenchFET® Gen IV power MOSFET
* Tuned for the lowest RDS - Qoss FOM
* 100 % Rg and UIS tested
* Qgd / Qgs ratio < 1 optimizes switching characteristics

SiSB46DN Applications

* Synchronous rectification
* DC/DC converters
* Motor drive switch
* Battery and load switch D1 D2 G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Vo

📥 Download Datasheet

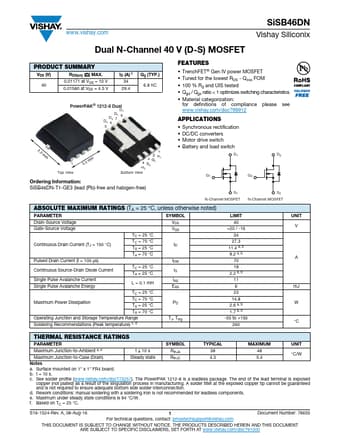

Preview of SiSB46DN PDF
datasheet Preview Page 2 datasheet Preview Page 3
