T70HF120 Datasheet - Vishay

Power Rectifier Diodes

T70HF120 Features

* Electrically isolated base plate

* Types up to 1200 VRRM

* 3500 VRMS isolating voltage

* Simplified mechanical designs, rapid assembly

* High surge capability

* Large creepage distances

* UL E78996 approved

* Compliant to RoHS directi

T70HF120 General Description

These series of T-modules use standard recovery power rectifier diodes. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assembly to be built. Applications include power supplies, battery charges, welders, motor controls and general i.

T70HF120 Datasheet (287.81 KB)

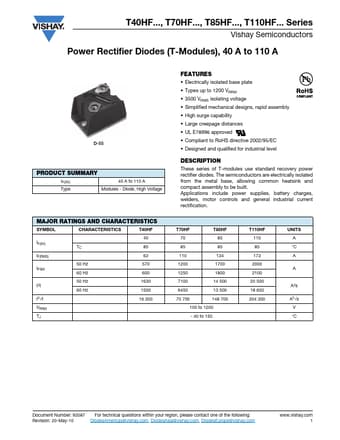

T70HF120 Datasheet Preview — Preview of T70HF120 PDF

Datasheet Details

Part number:

T70HF120

Manufacturer:

Vishay ↗

File Size:

287.81 KB

Description:

Power rectifier diodes.
T40HF, T70HF, T85HF, T110HF Series Vishay Semiconductors Power Rectifier Diodes (T-Modules), 40 A to 110 A D-55 PRODUCT SUMMARY IF(AV) 40 A to 110.
