TNPW0201-e3, TNPW0201e3 - High Stability Thin Film Flat Chip Resistors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TNPW0201-e3, TNPW0201e3. Please refer to the document for exact specifications by model.

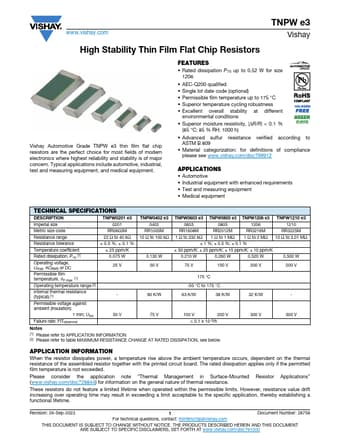

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TNPW0201-e3, TNPW0201e3
Manufacturer Vishay ↗
File Size 340.50 KB
Description High Stability Thin Film Flat Chip Resistors
Datasheet download datasheet TNPW0201e3-Vishay.pdf
Note This datasheet PDF includes multiple part numbers: TNPW0201-e3, TNPW0201e3.
Please refer to the document for exact specifications by model.

TNPW0201-e3 Product details

Description

TNPW0201 e3 TNPW0402 e3 TNPW0603 e3 TNPW0805 e3 TNPW1206 e3 TNPW1210 e3 Imperial size 0201 0402 0603 0805 1206 1210 Metric size code RR0603M RR1005M RR1608M RR2012M RR3216M RR3225M Resistance range 22 Ω to 40 kΩ 10 Ω to 100 kΩ 1 Ω to 332 kΩ 1 Ω to 1 MΩ 1 Ω to 2 MΩ 10 Ω to 3.01 MΩ Resistance tolerance ± 0.5 %; ± 0.1 % ± 1 %; ± 0.5 %; ± 0.1 % Temperature coefficient ± 25 ppm/K ± 50 ppm/K; ± 25 ppm/K; ± 15 ppm/K; ± 10 ppm/K Rated dissipation, P70 (1) Operating voltage, Umax.
