TNPW0402 - High Stability Thin Film Chip Resistors

Vishay

TNPW0402 Datasheet Preview — Preview of TNPW0402 PDF

Datasheet Details

Part number	TNPW0402
Manufacturer	Vishay ↗
File Size	150.25 KB
Description	High Stability Thin Film Chip Resistors
Datasheet	TNPW0402-Vishay.pdf

TNPW0402 Product details

Description

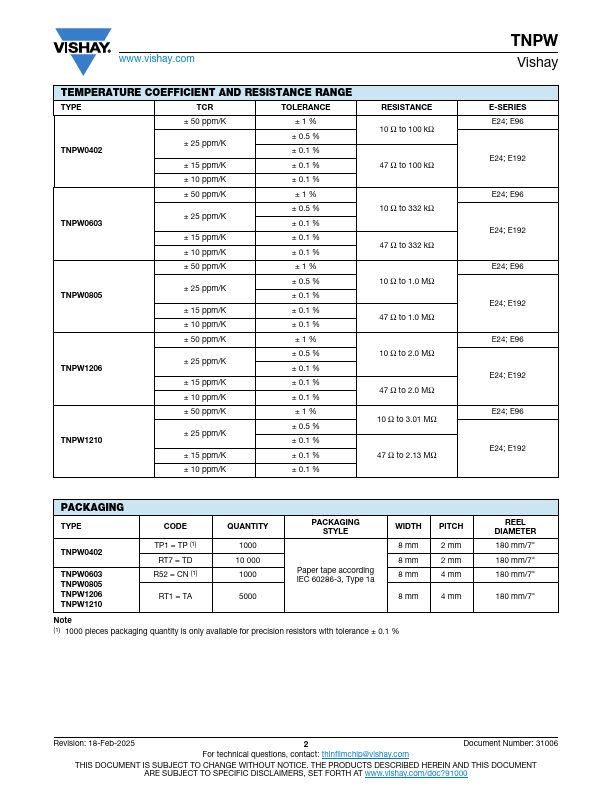

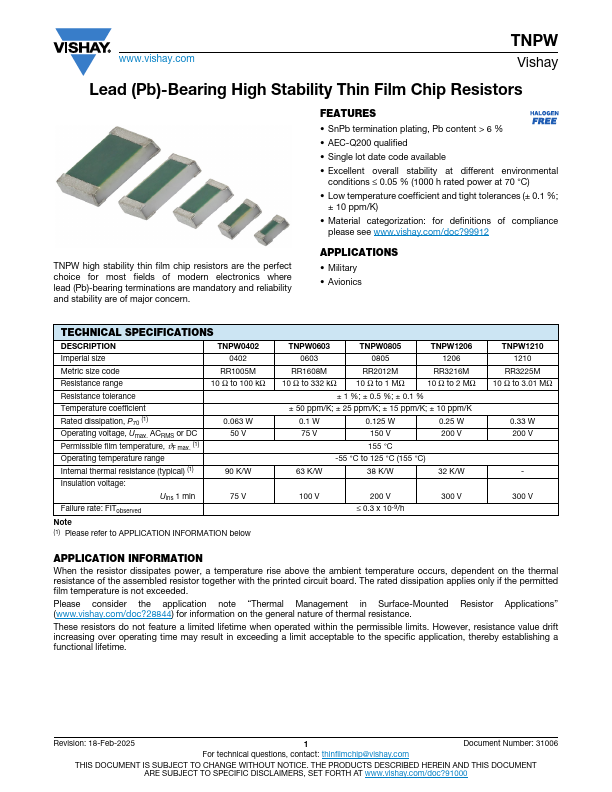

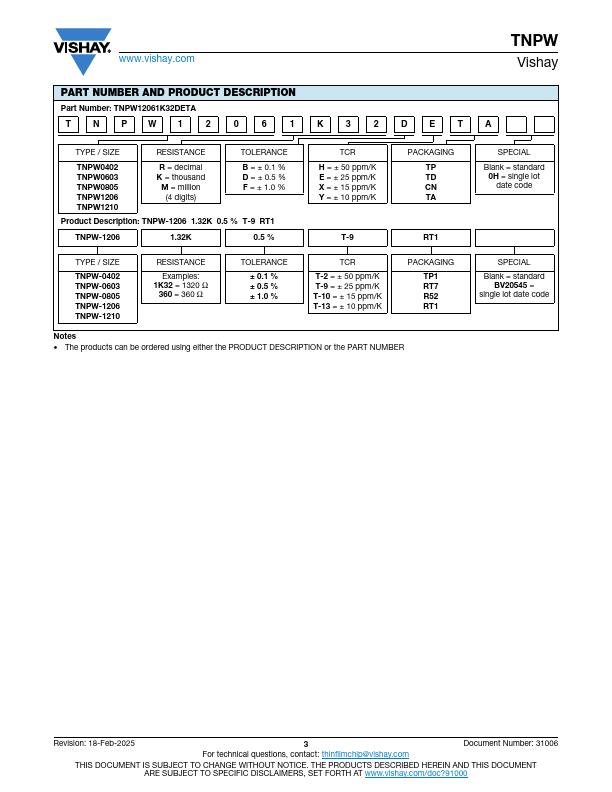

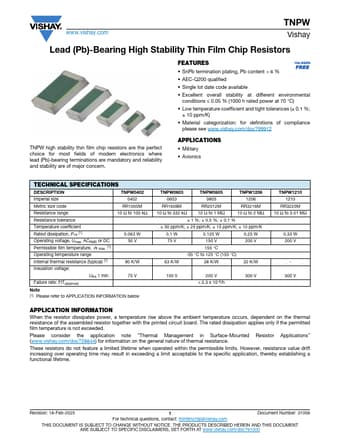

TNPW0402 Imperial size 0402 Metric size code RR1005M Resistance range 10 Ω to 100 kΩ Resistance tolerance Temperature coefficient Rated dissipation, P70 (1) Operating voltage, Umax.ACRMS or DC Permissible film temperature, ϑF max.(1) Operating temperature range 0.063 W 50 V Internal thermal resistance (typical) (1) 90 K/W Insulation voltage: Failure rate: FITobserved Uins 1 min 75 V Note (1) Please refer to APPLICATION INFORMATION below TNPW0603 TNPW0805 TNPW1206 0603 08

Features

SnPb termination plating, Pb content > 6 %.
AEC-Q200 qualified.
Single lot date code available.
Excellent overall stability at different environmental conditions ≤ 0.05 % (1000 h rated power at 70 °C).
Low temperature coefficient and tight tolerances (± 0.1 %; ± 10 ppm/K).
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
