TNPW0805, TNPW0402 Datasheet - Vishay

TNPW0805 High Stability Thin Film Chip Resistors

TNPW0402 Imperial size 0402 Metric size code RR1005M Resistance range 10 Ω to 100 kΩ Resistance tolerance Temperature coefficient Rated dissipation, P70 (1) Operating voltage, Umax. ACRMS or DC Permissible film temperature, ϑF max. (1) Operating temperature range 0.063 W 50 V Internal th.

TNPW0805 Features

* SnPb termination plating, Pb content > 6 %

* AEC-Q200 qualified

* Single lot date code available

* Excellent overall stability at different environmental conditions ≤ 0.05 % (1000 h rated power at 70 °C)

* Low temperature coefficient and tight tolerances (±

TNPW0402-Vishay.pdf

This datasheet PDF includes multiple part numbers: TNPW0805, TNPW0402. Please refer to the document for exact specifications by model.

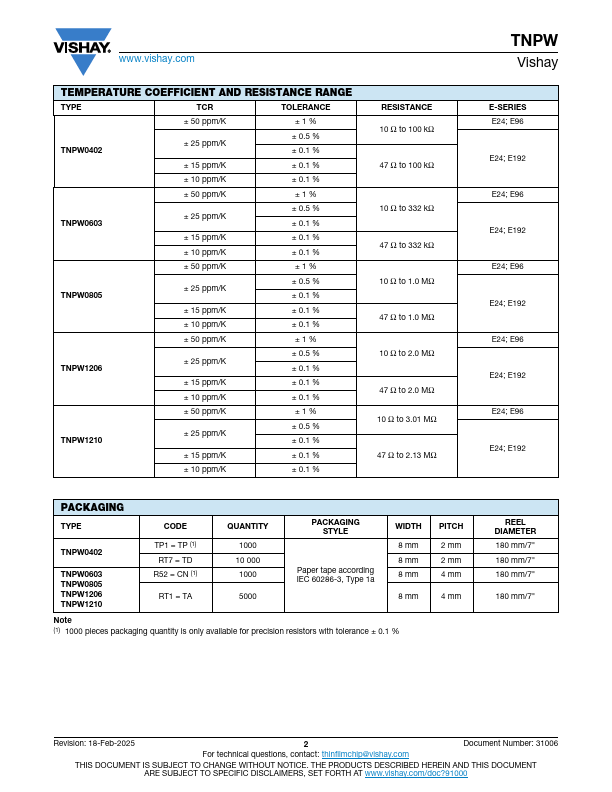

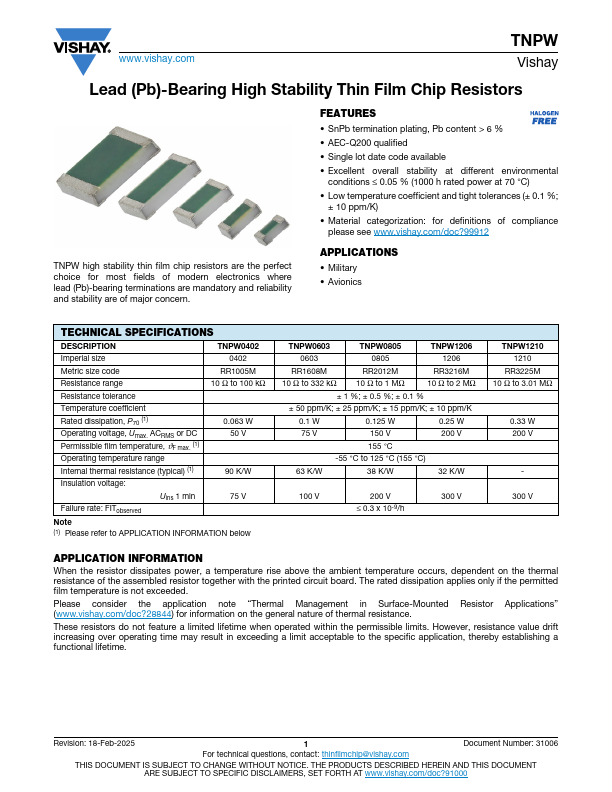

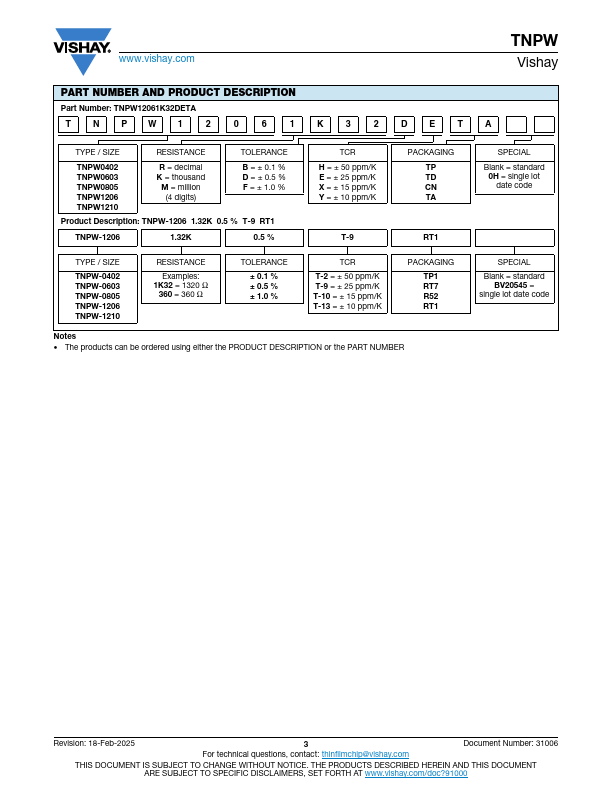

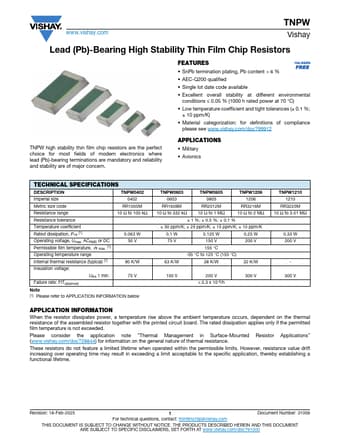

TNPW0805 Datasheet Preview Page 2 TNPW0805 Datasheet Preview Page 3

Datasheet Details

Part number:

TNPW0805, TNPW0402

Manufacturer:

Vishay ↗

File Size:

150.25 KB

Description:

High stability thin film chip resistors.

Note:

This datasheet PDF includes multiple part numbers: TNPW0805, TNPW0402.
Please refer to the document for exact specifications by model.
