TPSMC10A, TPSMC6.8 Datasheet - Vishay

TPSMC10A Transient Voltage Suppressors

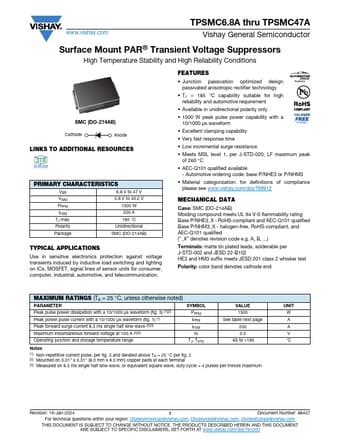

www.vishay.com TPSMC6.8A thru TPSMC47A Vishay General Semiconductor Surface Mount PAR® Transient Voltage Suppressors High Temperature Stability and High Reliability Conditions SMC (DO-214AB) Cathode Anode LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS VBR VWM PPPM IFSM TJ max. Polarity 6.8 V to 47 V 5.8 V to 40.2 V 1500 W 200 A 185 °C Unidirectional Package SMC (DO-214AB) TYPICAL APPLICATIONS Use in sensitive electronics protection against voltage transients in.

TPSMC10A Features

* Junction passivation optimized design passivated anisotropic rectifier technology Available

* TJ = 185 °C capability suitable for high reliability and automotive requirement

* Available in unidirectional polarity only

* 1500 W peak pulse power capability with a

TPSMC6.8-Vishay.pdf

TPSMC10A Datasheet Preview — This datasheet PDF includes multiple part numbers: TPSMC10A, TPSMC6.8. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPSMC10A, TPSMC6.8

Manufacturer:

Vishay ↗

File Size:

96.58 KB

Description:

Transient voltage suppressors.

Note:

This datasheet PDF includes multiple part numbers: TPSMC10A, TPSMC6.8.
Please refer to the document for exact specifications by model.
