TSOP38156, TSOP38130 - IR Receiver Module

Vishay

Datasheet Details

Part number	TSOP38156, TSOP38130
Manufacturer	Vishay
File Size	223.02 KB
Description	IR Receiver Module
Datasheet	TSOP38130-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: TSOP38156, TSOP38130. Please refer to the document for exact specifications by model.

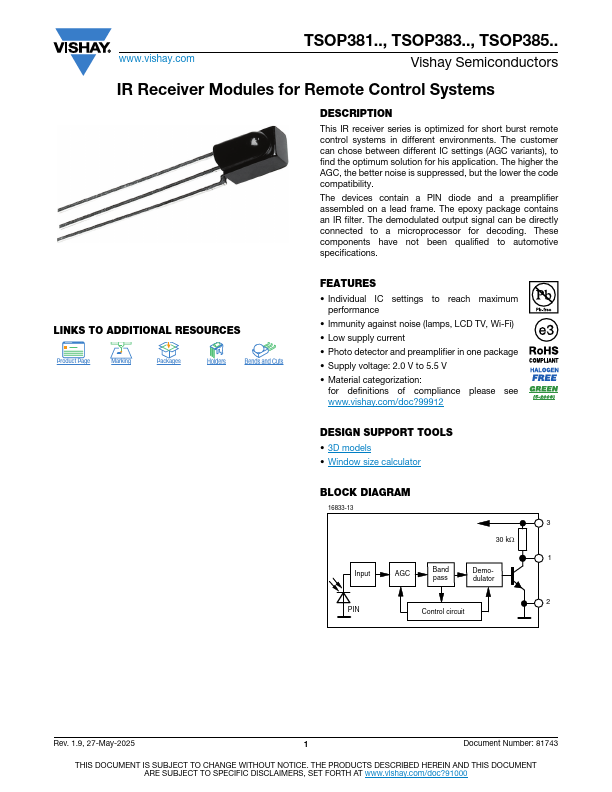

This IR receiver series is optimized for short burst remote control systems in different environments.

Individual IC settings to reach maximum performance.
Immunity against noise (lamps, LCD TV, Wi-Fi).
Low supply current.
Photo detector and preamplifier in one package.
Supply voltage: 2.0 V to 5.5 V.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 DESIGN.
