TSOP38330, TSOP38130 Datasheet - Vishay

TSOP38330 IR Receiver Module

This IR receiver series is optimized for short burst remote control systems in different environments. The customer can chose between different IC settings (AGC variants), to find the optimum solution for his application. The higher the AGC, the better noise is suppressed, but the lower the code com.

TSOP38330 Features

* Individual IC settings to reach maximum performance

* Immunity against noise (lamps, LCD TV, Wi-Fi)

* Low supply current

* Photo detector and preamplifier in one package

* Supply voltage: 2.0 V to 5.5 V

* Material categorization: for definitions of c

TSOP38130-Vishay.pdf

This datasheet PDF includes multiple part numbers: TSOP38330, TSOP38130. Please refer to the document for exact specifications by model.

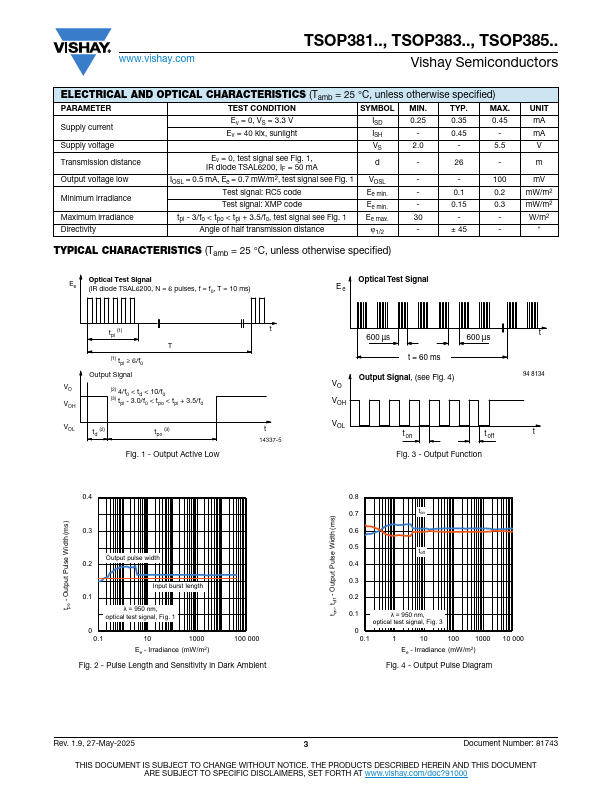

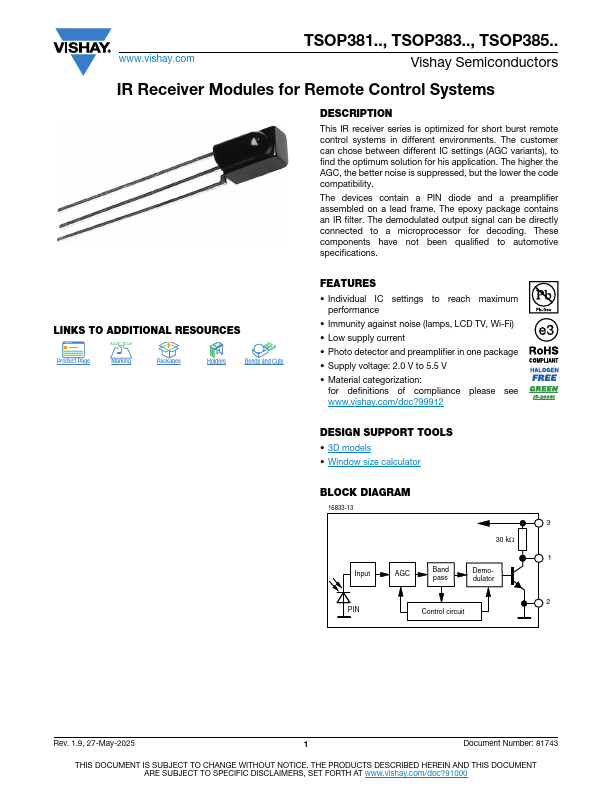

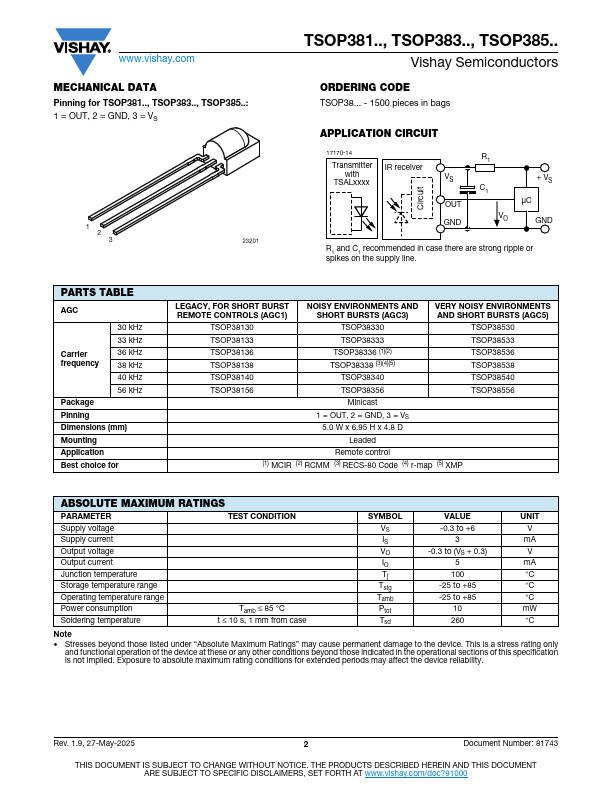

TSOP38330 Datasheet Preview Page 2 TSOP38330 Datasheet Preview Page 3

Datasheet Details

Part number:

TSOP38330, TSOP38130

Manufacturer:

Vishay ↗

File Size:

223.02 KB

Description:

Ir receiver module.

Note:

This datasheet PDF includes multiple part numbers: TSOP38330, TSOP38130.
Please refer to the document for exact specifications by model.
