V30100S, High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V30100S, VI30100S Vishay General Semiconductor High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.39 V at IF = 5 A .

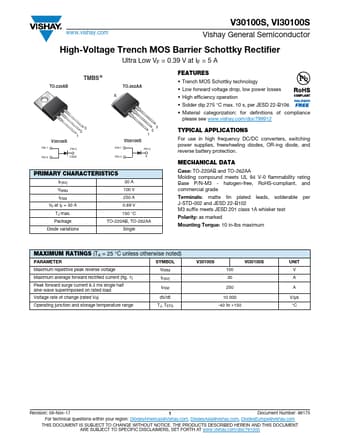

datasheet Preview Page 1 from Datasheet4u.com

V30100S_Vishay.pdf

V30100S Datasheet Preview — Preview of V30100S PDF

Datasheet Details

Part number:

V30100S

Manufacturer:

Vishay ↗

File Size:

139.30 KB

Description:

High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Material categorization: for definitions of compliance please see www. visha

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. MECHANICAL DATA Case: TO-220AB and TO-262AA Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
