VBUS054B-HSF Datasheet - Vishay

VBUS054B-HSF ESD Protection Diode

VBUS054B-HSF Features

* Ultra compact LLP75-6L package

* Low package height < 0.6 mm

* 4-line USB ESD protection

* Low leakage current

* Low load capacitance CD = 0.8 pF

* ESD immunity acc. IEC 61000-4-2 ± 15 kV contact discharge ± 15 kV air discharge

* e4 - preci

VBUS054B-HSF-Vishay.pdf

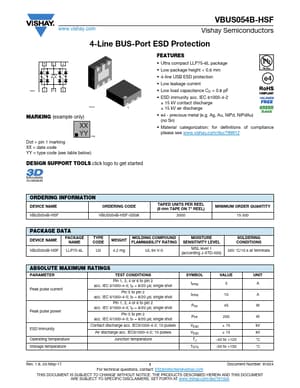

Preview of VBUS054B-HSF PDF
VBUS054B-HSF Datasheet Preview Page 2 VBUS054B-HSF Datasheet Preview Page 3

Datasheet Details

Part number:

VBUS054B-HSF

Manufacturer:

Vishay ↗

File Size:

187.62 KB

Description:

Esd protection diode.
