VBUS051CD-HD1 - Single-Line ESD-Protection Diode

VBUS051CD-HD1 Description

www.DataSheet.co.kr VBUS051CD-HD1 Vishay Semiconductors Low Capacitance, Single-Line ESD-Protection Diode .

VBUS051CD-HD1 Features

* Ultra compact LLP1006-2L package
* Low package height < 0.4 mm
* 1-line ESD-protection 2 1
* Low leakage current < 0.1 μA
* Low load capacitance CD = 0.6 pF 20855 20856
* ESD-protection to IEC 61000-4-2 ± 9 kV contact discharge ± 9 kV air discharg

VBUS051CD-HD1 Applications

* like USB2.0 or HDMI. With the VBUS051CD-HD1 one high speed data line can be protected against transient voltage signals like ESD (Electro Static Discharge). Connected to the data line (pin 2) and to ground (pin 1) negative transients will be clamped close below the ground level while positive transi

📥 Download Datasheet

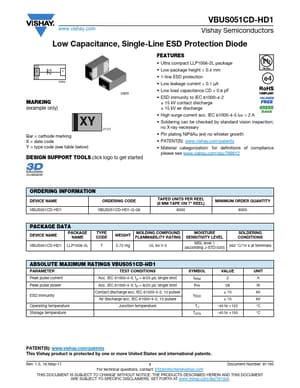

Preview of VBUS051CD-HD1 PDF
datasheet Preview Page 2 datasheet Preview Page 3
