VBUS053AZ-HAF

USB-OTG BUS-Port ESD-Protection

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Vishay Semiconductors VBUS053AZ-HAF-GS08 TVS DIODE 5.5VWM 18VC LLP75-7L DigiKey 24000 15000 units
$0.2

VBUS053AZ-HAF Datasheet (116.06 KB)

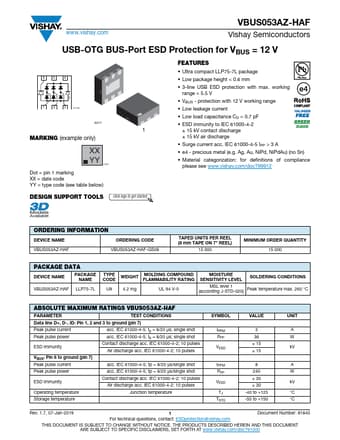

Preview of VBUS053AZ-HAF PDF

Datasheet Details

Part number:

VBUS053AZ-HAF

Manufacturer:

Vishay ↗

File Size:

116.06 KB

Description:

Usb-otg bus-port esd-protection.

VBUS053AZ-HAF Features

* Ultra compact LLP75-7L package 6 5 4

* Low package height < 0.6 mm

* 3-line USB ESD-protection with max. working range = 5.5 V 7

* VBUS - protection with 12 V working range 21102 1 2 3

* Low leakage current

* Low load capacitance CD = 0.7 pF 20
