VBUS052BD-HTF - ESD Protection Diode

VBUS052BD-HTF Description

www.vishay.com VBUS052BD-HTF Vishay Semiconductors Low Capacitance, 2-Line ESD Protection Diode 21 4 3 20904 20903 1 MARKING (example only) XX.

VBUS052BD-HTF Features

* Compact LLP75-4L package
* Low package height < 0.6 mm
* 2-line ESD protection
* Low leakage current < 0.1 μA
* Low load capacitance CD = 1.5 pF
* ESD immunity acc. IEC 61000-4-2 ± 15 kV contact discharge ± 15 kV air discharge
* High surge

📥 Download Datasheet

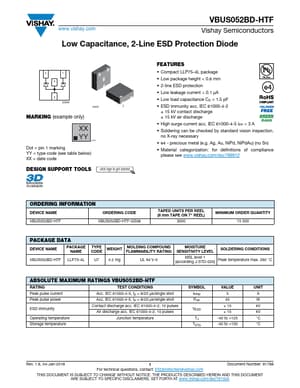

Preview of VBUS052BD-HTF PDF
datasheet Preview Page 2 datasheet Preview Page 3
