VBUS051BD-HD1 Single-Line ESD-Protection Diode

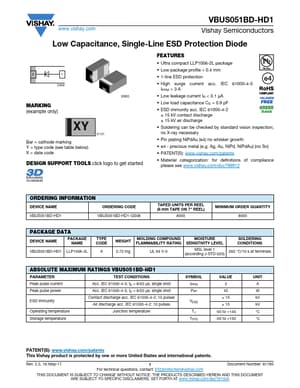

📥 Download Datasheet  Datasheet Preview Page 1

Description

VBUS051BD-HD1 Vishay Semiconductors Low Capacitance, Single-Line ESD-Protection Diode .
only.

📥 Download Datasheet

Preview of VBUS051BD-HD1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
VBUS051BD-HD1
Manufacturer
Vishay ↗
File Size
132.70 KB
Datasheet
VBUS051BD-HD1-Vishay.pdf
Description
Single-Line ESD-Protection Diode

Features

* Ultra compact LLP1006-2L package
* Low package height < 0.4 mm
* 1-line ESD-protection
* Low leakage current < 0.1 µA e4
* Low load capacitance CD = 1.3 pF
* ESD-protection to IEC 61000-4-2 ± 15 kV contact discharge ± 15 kV air discharge

Applications

* like USB2.0 or HDMI With the VBUS051BD-HD1 one high speed data line can be protected against transient voltage signals like ESD (Electro Static Discharge). Connected to the data line (pin 2) and to ground (pin 1) negative transients will be clamped close below the ground level while positive transie
