VF30100C-E3 Dual High Voltage Trench MOS Barrier Schottky Rectifier

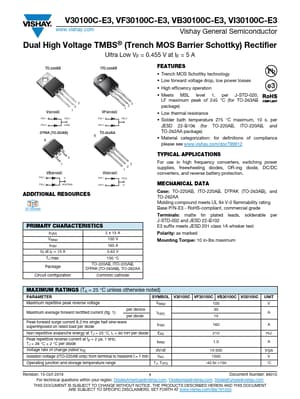

📥 Download Datasheet  Datasheet Preview Page 1

Description

V30100C-E3, VF30100C-E3, VB30100C-E3, VI30100C-E3 www.vishay.com Vishay General Semiconductor Dual High Voltage TMBS® (Trench MOS Barrier Schottky).

📥 Download Datasheet

Preview of VF30100C-E3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
VF30100C-E3
Manufacturer
Vishay ↗
File Size
208.57 KB
Datasheet
VF30100C-E3-Vishay.pdf
Description
Dual High Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Low thermal resistance
* Solder bath temperature 275 °C max

Applications

* For use in high frequency converters, switching power supplies, freewheeling diodes, OR-ing diode, DC/DC converters, and reverse battery protection. MECHANICAL DATA Case: TO-220AB, ITO-220AB, D2PAK (TO-263AB), and TO-262AA Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-com
