VLMB1500-GS08, VLMS1500 - Ultrabright 0402 ChipLED

VLMB1500-GS08 Description

VLMS1500, VLMO1500, VLMY1500, VLMG1500, VLMB1500 www.vishay.com Vishay Semiconductors Ultrabright 0402 ChipLED .
The new ChipLED series have been designed in the smallest SMD package. smaller products.

VLMB1500-GS08 Features

* Super thin ChipLED with exceptional brightness 1.0 mm x 0.5 mm x 0.35 mm (L x W x H)
* High reliability PCB based
* Wavelength (470 to 475) nm (blue), typ. 571 nm (yellow green), (587 to 597) nm (yellow), typ. 605 nm (soft orange), typ. 631 nm (super red)
* AllnGaP

VLMB1500-GS08 Applications

* The 0402 LED is an obvious solution for small-scale, high brightness products that are expected to work reliable in an arduous environment. APPLICATIONS
* Backlight keypads
* Navigation systems
* Cellular phone displays
* Displays for industrial control systems

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VLMB1500-GS08, VLMS1500. Please refer to the document for exact specifications by model.

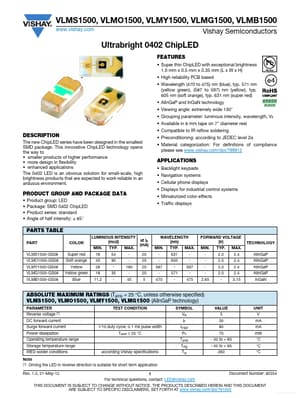

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VLMB1500-GS08, VLMS1500
Manufacturer
Vishay ↗
File Size
239.18 KB
Datasheet
VLMS1500_Vishay.pdf
Description
Ultrabright 0402 ChipLED
Note
This datasheet PDF includes multiple part numbers: VLMB1500-GS08, VLMS1500.
Please refer to the document for exact specifications by model.
