VO4256 Optocoupler

The VO4256 phototriac consists of a GaAs IRLED optically coupled to a photosensitive non-zero crossing TRIAC packaged in a DIP-6 package. High input sensitivity is achieved by using an emitter follower phototransistor and a cascaded SCR predriver resulting in an LED trigger current of 1.6 mA for bin.

VO4256 Features

* High static dV/dt 5 kV/μs

* High input sensitivity 1.6 mA, 2 mA, and 3 mA

* 400 V and 600 V blocking voltage

* 300 mA on-state current

* Isolation rated voltage 4420 VRMS

* Material categorization: for definitions of compliance please see www.vishay.

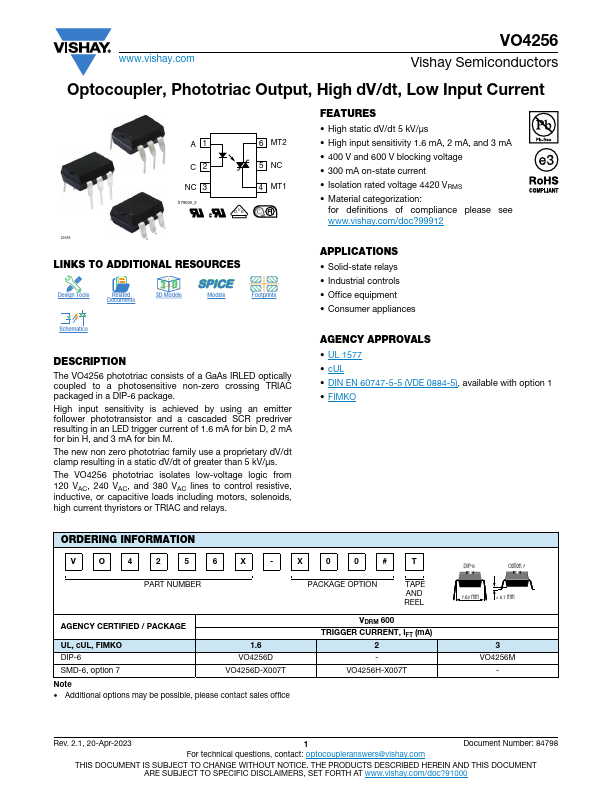

VO4256 Datasheet (226.44 KB)
