VO4254 Optocoupler

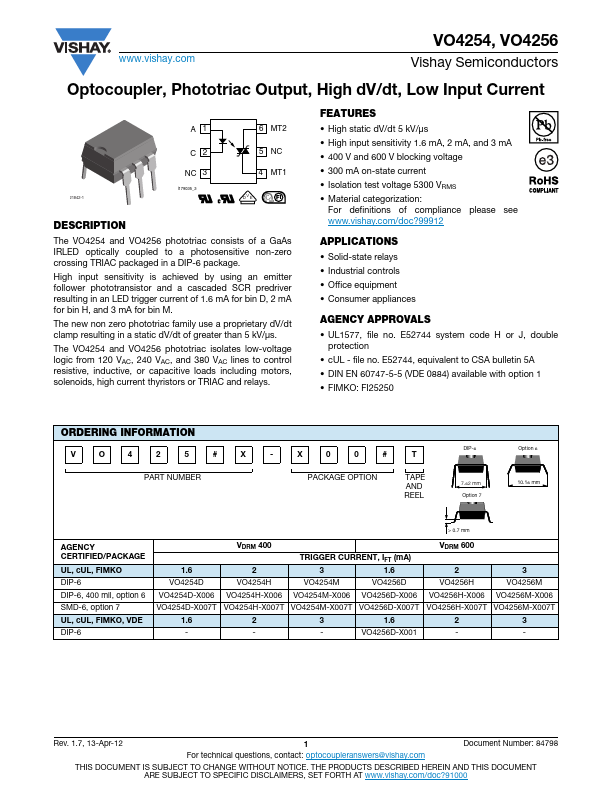

www.vishay.com VO4254, VO4256 Vishay Semiconductors Optocoupler, Phototriac Output, High dV/dt, Low Input Current 21842-1 A1 C2 NC 3 i179035_3 6 .
The VO4254 and VO4256 phototriac consists of a GaAs IRLED optically coupled to a photosensitive non-zero crossing TRIAC packaged in a DIP-6 package.

VO4254_VishaySiliconix.pdf

VO4254 Datasheet Preview — Preview of VO4254 PDF

Datasheet Details

Part number:

VO4254

Manufacturer:

Vishay ↗ Siliconix

File Size:

132.47 KB

Description:

Optocoupler

Features

* High static dV/dt 5 kV/μs
* High input sensitivity 1.6 mA, 2 mA, and 3 mA
* 400 V and 600 V blocking voltage
* 300 mA on-state current
* Isolation test voltage 5300 VRMS
* Material categorization: For definitions of compliance please see www. vishay. c

Applications

* Solid-state relays
* Industrial controls
* Office equipment
* Consumer appliances AGENCY APPROVALS
* UL1577, file no. E52744 system code H or J, double protection
* cUL - file no. E52744, equivalent to CSA bulletin 5A
* DIN EN 60747-5-5 (VDE
