VO4158 Datasheet - Vishay

VO4158 - Optocoupler

The VO4158 consists of a GaAs IRLED optically coupled to a photosensitive zero crossing TRIAC packaged in a DIP-6 package. High input sensitivity is achieved by using an emitter follower phototransistor and a cascaded SCR predriver resulting in an LED trigger current of 1.6 mA for bin D, 2 mA for bi.

VO4158 Features

* High static dV/dt 5 kV/μs

* High input sensitivity IFT = 1.6 mA, 2 mA, and 3 mA

* 300 mA on-state current

* Zero voltage crossing detector

* 800 V blocking voltage

* Isolation rated voltage 4420 VRMS

* Material categorization: for definitions

VO4158-Vishay.pdf

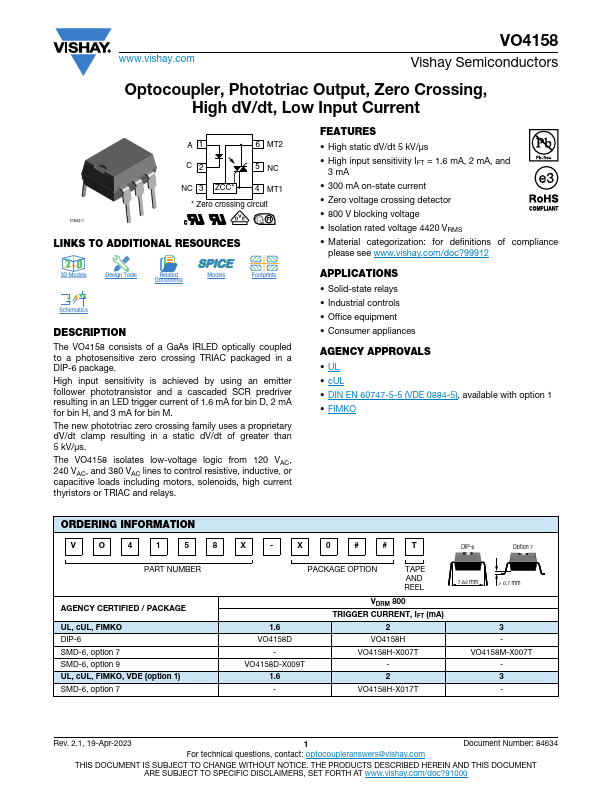

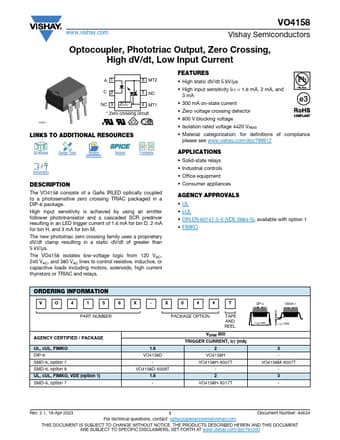

Preview of VO4158 PDF

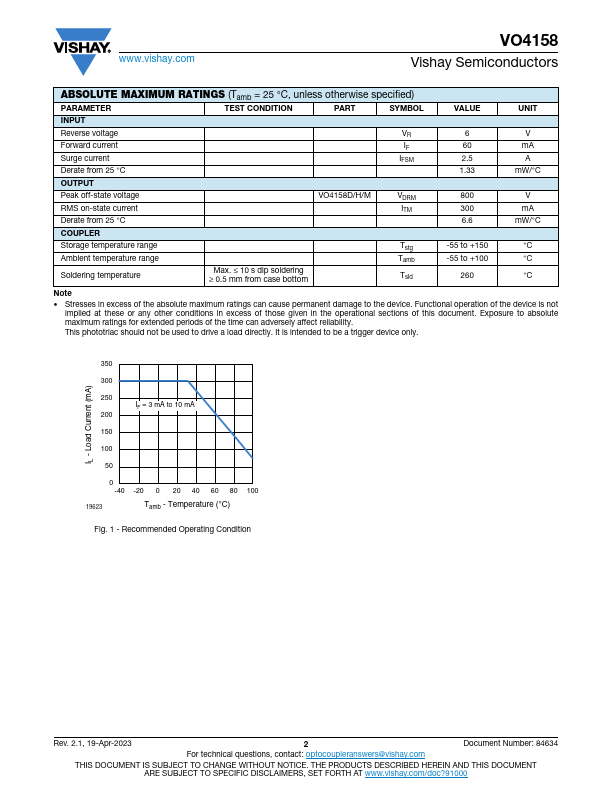

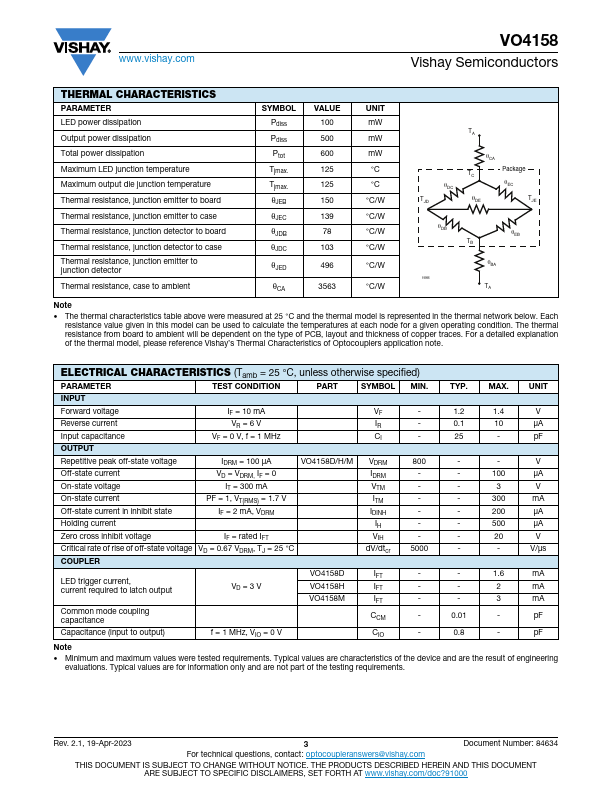

VO4158 Datasheet Preview Page 2 VO4158 Datasheet Preview Page 3

Datasheet Details

Part number:

VO4158

Manufacturer:

Vishay ↗

File Size:

160.64 KB

Description:

Optocoupler.
