VO4156 Datasheet - Vishay Siliconix

Optocoupler

VO4156 Features

* High static dV/dt 5 kV/μs

* High input sensitivity IFT = 1.6 mA, 2 mA, and 3 mA

* 300 mA on-state current

* Zero voltage crossing detector

* 400 V and 600 V blocking voltage

* Isolation rated voltage 4420 VRMS

* Material categorization: for d

VO4156 General Description

The VO4154 and VO4156 consists of a GaAs IRLED optically coupled to a photosensitive zero crossing TRIAC packaged in a DIP-6 package. High input sensitivity is achieved by using an emitter follower phototransistor and a cascaded SCR predriver resulting in an LED trigger current of 1.6 mA for bin D, .

VO4156 Datasheet (229.50 KB)

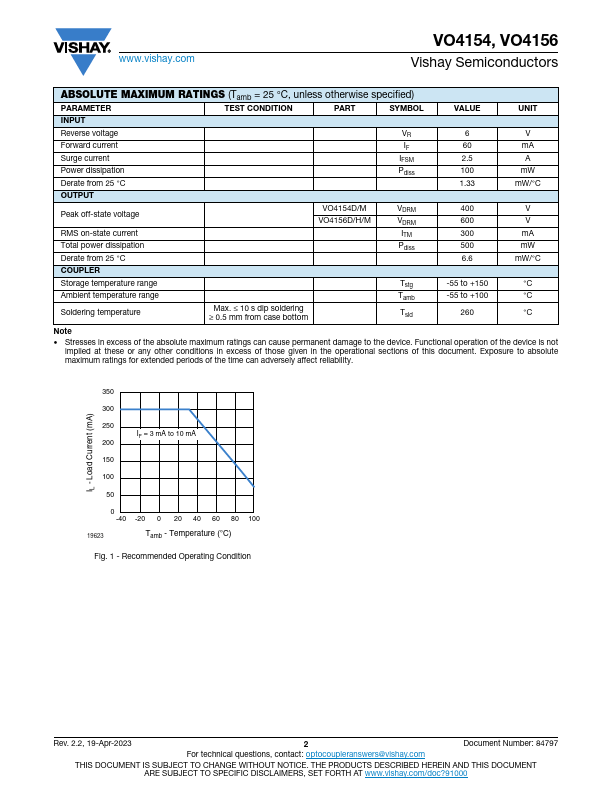

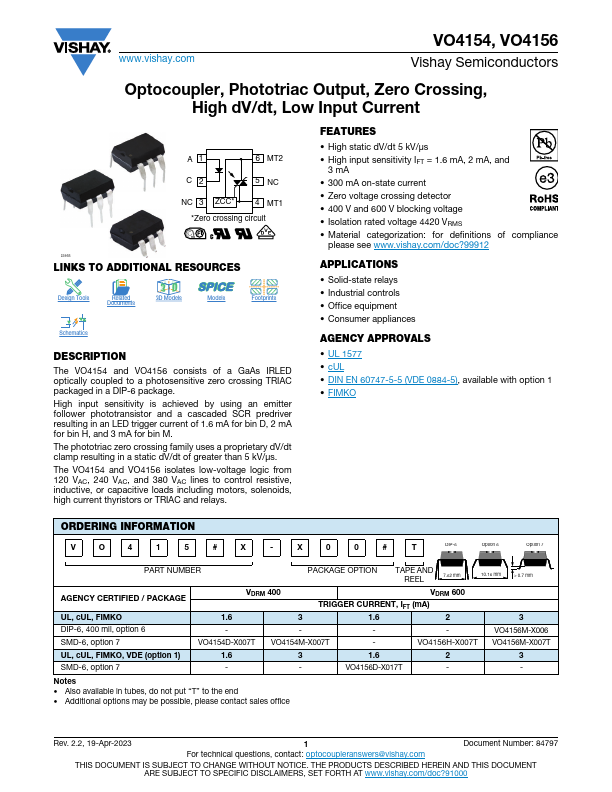

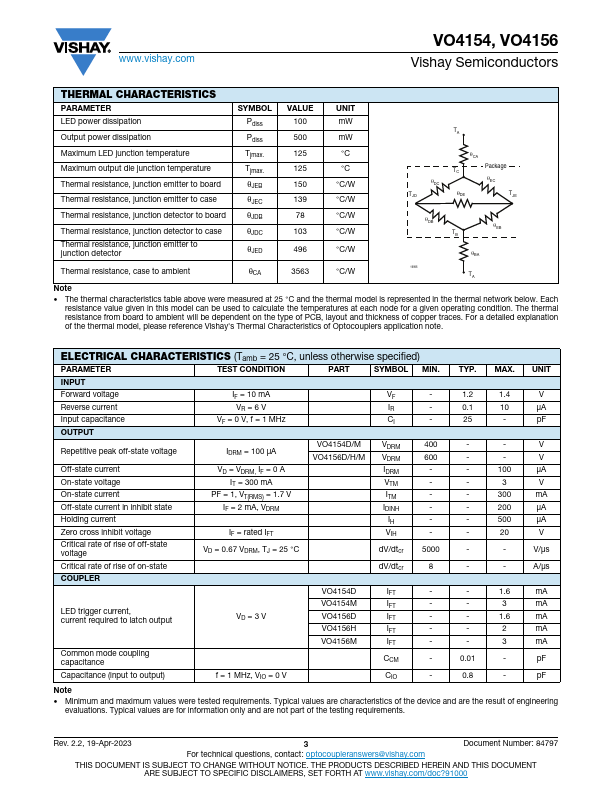

VO4156 Datasheet Preview — Preview of VO4156 PDF

Datasheet Details

Part number:

VO4156

Manufacturer:

Vishay ↗ Siliconix

File Size:

229.50 KB

Description:

Optocoupler.
www.vishay.com VO4154, VO4156 Vishay Semiconductors Optocoupler, Phototriac Output, Zero Crossing, High dV/dt, Low Input Current A1 6 MT2 C2 5 N.
