VO4258, VO4257, Optocoupler

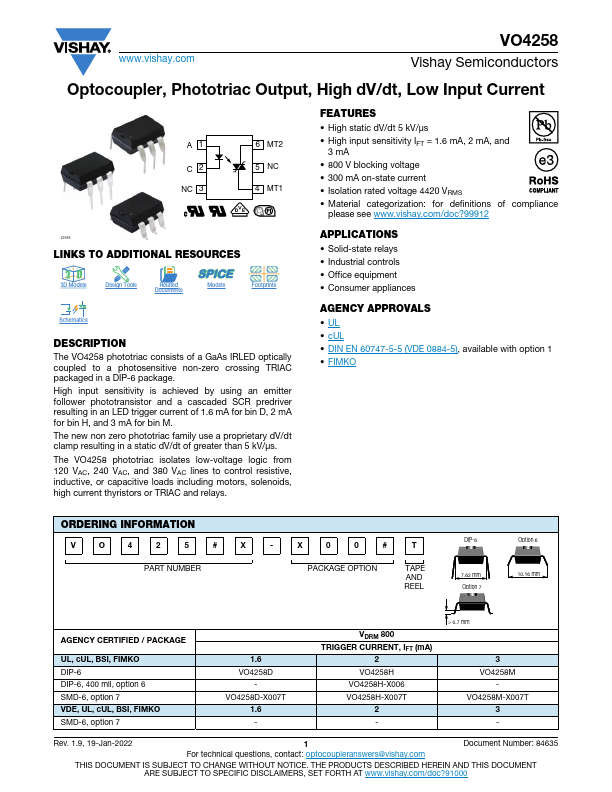

www.vishay.com VO4258 Vishay Semiconductors Optocoupler, Phototriac Output, High dV/dt, Low Input Current A1 C2 NC 3 6 MT2 5 NC 4 MT1 23165 LINK.
The VO4258 phototriac consists of a GaAs IRLED optically coupled to a photosensitive non-zero crossing TRIAC packaged in a DIP-6 package.

VO4257_VishaySiliconix.pdf

VO4258 Datasheet Preview — This datasheet PDF includes multiple part numbers: VO4258, VO4257. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VO4258, VO4257

Manufacturer:

Vishay ↗ Siliconix

File Size:

446.98 KB

Description:

Optocoupler

Note:

This datasheet PDF includes multiple part numbers: VO4258, VO4257.
Please refer to the document for exact specifications by model.

Features

* High static dV/dt 5 kV/μs
* High input sensitivity IFT = 1.6 mA, 2 mA, and 3 mA
* 800 V blocking voltage
* 300 mA on-state current
* Isolation rated voltage 4420 VRMS
* Material categorization: for definitions of compliance please see www. vishay. com/

Applications

* Solid-state relays
* Industrial controls
* Office equipment
* Consumer appliances AGENCY APPROVALS
* UL
* cUL
* DIN EN 60747-5-5 (VDE 0884-5), available with option 1
* FIMKO ORDERING INFORMATION V O 4 2 5 # X - X 0 0 #
