VO4258 Optocoupler

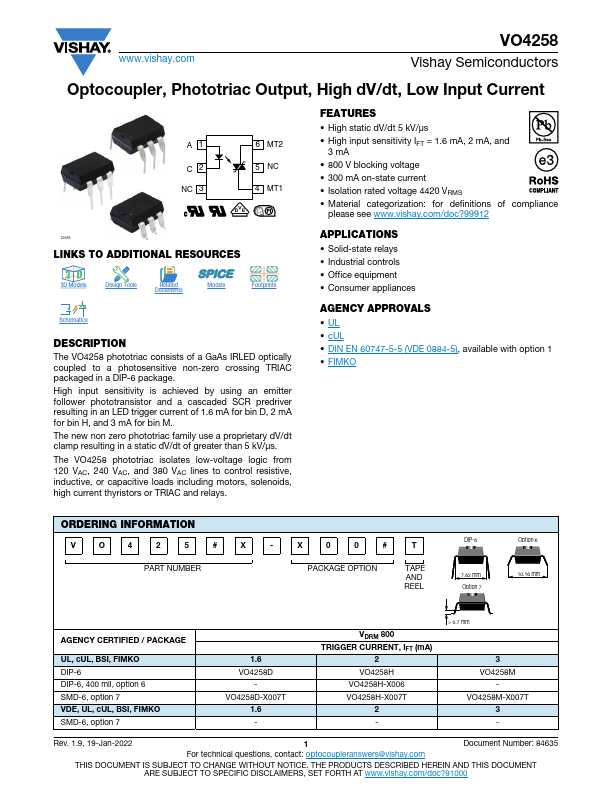

The VO4258 phototriac consists of a GaAs IRLED optically coupled to a photosensitive non-zero crossing TRIAC packaged in a DIP-6 package. High input sensitivity is achieved by using an emitter follower phototransistor and a cascaded SCR predriver resulting in an LED trigger current of 1.6 mA for bin.

VO4258 Features

* High static dV/dt 5 kV/μs

* High input sensitivity IFT = 1.6 mA, 2 mA, and 3 mA

* 800 V blocking voltage

* 300 mA on-state current

* Isolation rated voltage 4420 VRMS

* Material categorization: for definitions of compliance please see www.vishay.com/
