VS-15CTQ035PbF Schottky Rectifier

VS-15CTQPbF Series, VS-15CTQ-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 7.5 A Base 2 common cathode TO-220AB Anode .
The VS-15CTQ center tap Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

VS-15CTQ035PbF-Vishay.pdf

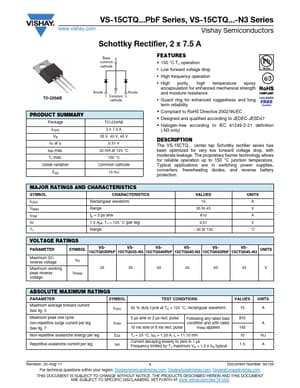

VS-15CTQ035PbF Datasheet Preview — Preview of VS-15CTQ035PbF PDF

Datasheet Details

Part number:

VS-15CTQ035PbF

Manufacturer:

Vishay ↗

File Size:

167.38 KB

Description:

Schottky Rectifier

Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rectangular waveform Range tp = 5 μs sine VF 7.5 Apk, TJ = 125 °C (per leg) TJ Range VALUES 15 35 to 45 810 0.51 - 55 to
