VS-30BQ040HM3 High Performance Schottky Rectifier

VS-30BQ040HM3 Description

www.vishay.com VS-30BQ040HM3 Vishay Semiconductors High Performance Schottky Rectifier, 3.0 A Cathode Anode SMC (DO-214AB) PRIMARY CHARACTERISTI.
The VS-30BQ040HM3 surface-mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC boards.

VS-30BQ040HM3 Features

* Very low forward voltage drop
* Guard ring for enhanced ruggedness and long term reliability
* Small foot print, surface mountable
* High frequency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Meets JESD 201 class 2 whisk

VS-30BQ040HM3 Applications

* requiring low forward drop and small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.  MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ R

📥 Download Datasheet

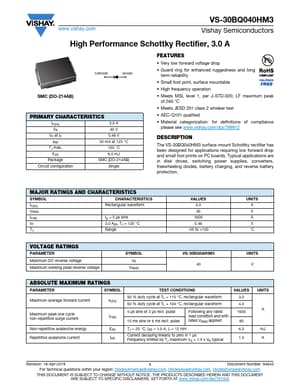

Preview of VS-30BQ040HM3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
